Differential Mode Noise
What is Differential Mode Noise?
Differential mode noise is unwanted electrical noise that appears between two conductors carrying current in opposite directions within a closed electrical loop. The noise exists in series with the desired signal and circulates through the normal current path between the power source and the load.
Differential mode noise is common in power supplies, switched mode power supplies (SMPS), industrial electronics and mains-powered systems.
How Differential Mode Noise Works

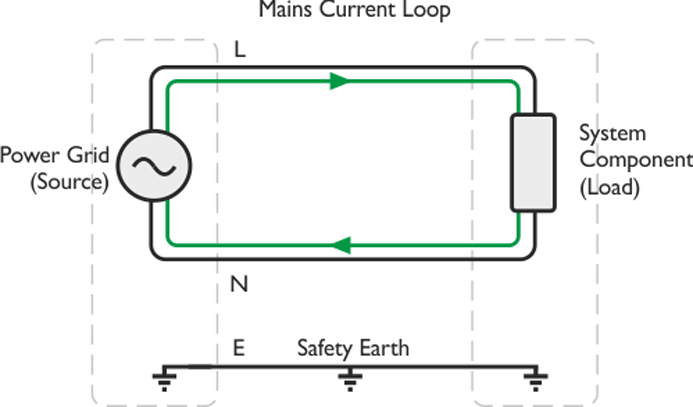

In a normal electrical circuit:
- Current flows from the source to the load
- The return current flows back to the source
- Both currents travel in opposite directions
This creates a closed current loop.
What Causes Differential Mode Noise?
Differential noise can be generated by:
- Switching power supplies
- Rectifiers
- Fast switching semiconductors
- Poor wiring layout
- Inductive loads
- External electromagnetic interference
The noise may originate from:
- The power source
- The load
- Internal circuit wiring
If conductors are not closely coupled, noise can more easily circulate through the loop.
Differential Mode Noise in Power Supplies
Differential mode noise is especially common in switched mode power supplies because of high-frequency switching activity.
Rapid switching can generate:
- Voltage spikes
- Current ripple
- High-frequency interference
This noise may reduce:
- System efficiency
- Signal quality
- EMC performance
Differential Mode vs Common Mode Noise
Differential mode noise and common mode noise are different types of electrical interference.
1. Differential Mode Noise
- Appears between line conductors
- Travels through the normal current path
- Current flows in opposite directions
2. Common Mode Noise
- Appears equally on both conductors relative to earth
- Often couples through parasitic capacitance
- Typically related to grounding and shielding issues
How Differential Mode Noise Is Reduced
Differential mode noise is commonly reduced using filtering techniques.

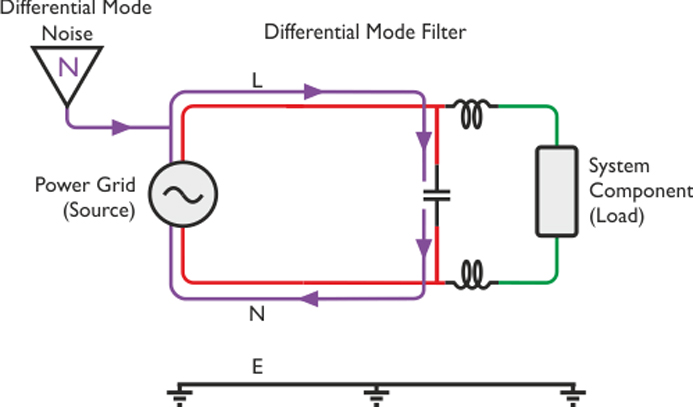

A typical differential mode filter includes:
- Series inductors
- Capacitors connected across the line conductors
The filter helps:
- Block high-frequency interference
- Reduce circulating noise currents
- Improve EMC performance
Differential Mode Noise Filters
The filtering circuit usually works by:
- Increasing impedance to high-frequency noise
- Allowing normal power frequency signals to pass
- Shunting unwanted noise through capacitors
This reduces the amount of interference reaching the load.
Importance of Circuit Design
Good PCB and wiring design also helps reduce differential mode noise.
Best practices include:
- Keeping current loops small
- Routing forward and return conductors close together
- Using quality grounding techniques
- Minimising switching loop areas
Proper layout can significantly improve electromagnetic compatibility performance.
Why Differential Mode Noise Matters
Excessive differential mode noise can:
- Affect signal integrity
- Cause EMC compliance failures
- Introduce instability into electronic systems
- Reduce equipment reliability
Managing differential mode interference is therefore critical in modern electronic and power systems.
People Also Ask
What is differential mode noise?
Differential mode noise is electrical interference that appears between two conductors carrying current in opposite directions in a circuit loop.
What causes differential mode noise?
It is commonly caused by switching circuits, rectifiers, poor wiring layout and electromagnetic interference.
What is the difference between common mode and differential mode noise?
Differential mode noise appears between conductors, while common mode noise appears equally on both conductors relative to earth.
How is differential mode noise reduced?
It is typically reduced using inductors, capacitors and proper circuit layout techniques.
Why is differential mode noise important in power supplies?
Switch mode power supplies generate high-frequency switching noise that can affect EMC performance and system reliability.
