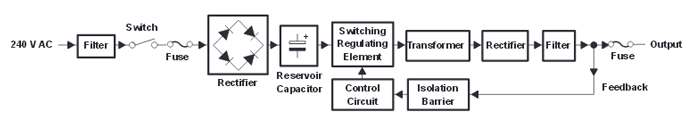

Input Filtering and Rectification

The AC mains input first passes through:

• An EMI/RFI filter
• A fuse or protection circuit

The filter helps prevent electrical noise from entering or leaving the power supply.

The AC voltage is then converted into high-voltage DC using a bridge rectifier and smoothing capacitors.

High-Frequency Switching

A switching transistor or MOSFET rapidly switches the DC voltage on and off at high frequency.

Pulse Width Modulation (PWM) control circuits regulate:

• Switching frequency
• Duty cycle
• Output voltage stability

High-frequency operation allows:

• Smaller transformers
• Smaller capacitors
• Higher efficiency
• Reduced weight and size

Transformer Isolation

Unlike traditional linear supplies using large 50Hz transformers, direct-off-line supplies use compact high-frequency transformers.

The transformer provides:

• Electrical isolation
• Voltage conversion
• Improved efficiency

Because the transformer operates at high frequency, it can be much smaller and lighter.

Output Rectification and Filtering

The high-frequency transformer output is rectified using fast recovery diodes or synchronous rectifiers.

Filtering capacitors and inductors then smooth the output to produce stable DC voltage.

Feedback circuits continuously monitor the output and adjust switching behaviour to maintain regulation.

Advantages of Direct-Off-Line Power Supplies

Direct-off-line SMPS designs offer several advantages:

• High efficiency
• Smaller size and weight
• Reduced heat generation
• Lower manufacturing cost
• Wide input voltage capability

Modern designs commonly achieve efficiencies around 90% or higher.

Inrush Current Limiting

At startup, smoothing capacitors can draw very large inrush currents.

To prevent damage, direct-off-line supplies often include:

• NTC thermistors
• Resistor-triac circuits
• Active inrush current limiting circuits

These reduce startup stress on components and improve reliability.

NTC Thermistors in Off-Line Supplies

NTC thermistors are commonly used because:

• They provide high resistance when cold
• Resistance decreases as temperature rises
• They limit initial charging current naturally

This makes them a simple and cost-effective protection method.

Applications of Direct-Off-Line Supplies

Direct-off-line supplies are used in:

• Laptop adapters
• Computer power supplies
• Telecommunications systems
• Gaming consoles
• Industrial equipment
• LED lighting systems

Their efficiency and compact size make them ideal for modern electronic equipment.

People Also Ask

What is a direct-off-line power supply?

A direct-off-line power supply is an SMPS that operates directly from AC mains without a large low-frequency transformer at the input.

Why are direct-off-line power supplies efficient?

They use high-frequency switching, which reduces transformer size, lowers losses and improves efficiency.

What is the difference between a linear power supply and an off-line SMPS?

Linear supplies use large low-frequency transformers, while off-line SMPS designs use high-frequency switching and compact transformers.

Why is inrush current limiting needed?

Large capacitors can draw very high startup current, which may damage components if not controlled.

Where are direct-off-line power supplies used?

They are commonly used in computers, telecommunications equipment, LED drivers and consumer electronics.
