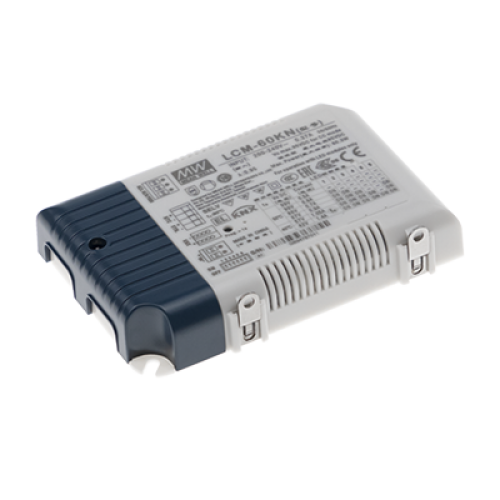

LCM-60KN-AUX
60.3W Multiple-Stage Constant Current Mode Push Dimming LED Driver with Auxiliary Output Please ring us to discuss a great price for this product.Product Features
- Integrated KNX push button interface
- Integrated constant light output
- 3 years warranty
- Flicker-free design
- KNX/EIB protocol
- Supports emergency lighting (EL)
- Constant current mode output with multiple levels selectable by dip switch
- Synchronisation up to 10 units
Description
The LCM-60KN series is a 60W AC/DC constant current mode output LED driver designed with selectable output levels via dip switch and integrated KNX interface, eliminating the need for external KNX-DALI converters.It operates from 180~295VAC and provides output current options between 500mA and 1400mA. With up to 91% efficiency and fanless thermal design, the unit functions reliably across a wide temperature range of -30°C to +90°C through free air convection.Additional KNX features include push dimming, constant light output, energy monitoring, and up to 10-unit synchronisation, making it ideal for smart LED lighting control in KNX-based environments.
