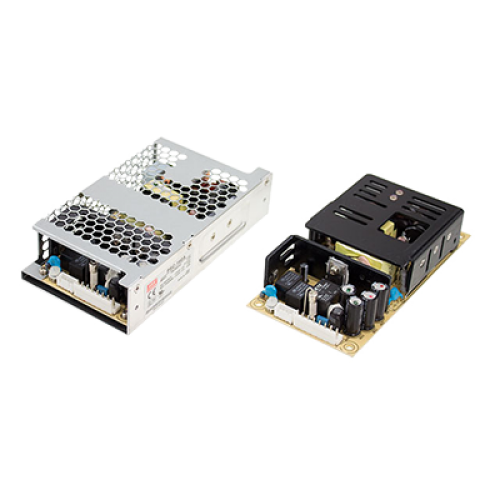

PSC-160B
160W 27.6VDC 3.8A PCB Security Power Supply with UPS Function Please ring us to discuss a great price for this product.Product Features
- Cooling by free air convection
- Protections: Short circuit / Overload / Over voltage
- Universal AC input / Full range
- Relay contact signal output for AC OK and Battery Low
- 6"x3" compact PCB size
- Battery low protection / Battery reverse polarity protection by fuse
- 100% full load burn-in test
- Built-in active PFC function
- Models with L-Bracket and cover available (PSC-160x-C, x=A,B)
- 2 years warranty
Description
PSC-160 series is a 160W AC/DC security power supply, allowing the universal input range between 90VAC and 264VAC and incorporating the built-in PFC function. In addition to the primary output, there is a charger output, with the smaller rated current, that provides the backup power supply application the security access systems require. PSC-160 delivers an efficiency up to 90%; it can operate with air convection under -20°C through 70°C. This series is designed with thorough alarm features, including AC OK and battery low signaling; moreover, the relay contact is provided to facilitate users' system designs. PSC-160 is available in the PCB type or the enclosed type with L-Bracket and cover.
Style
- PCB
