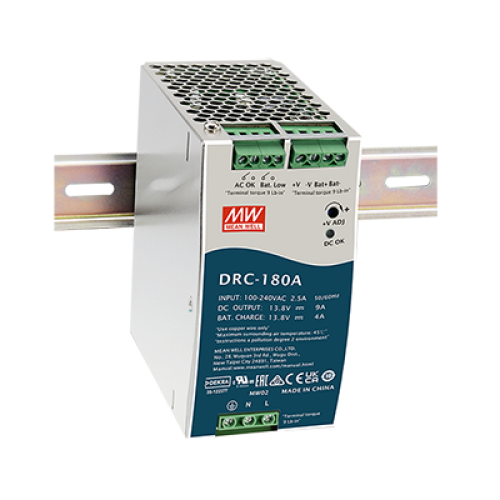

DRC-180A
179.4W 13.8VDC 13.8VDC 9A 4A UPS Function DIN Rail Power Supply Please ring us to discuss a great price for this product.Product Features
- Alarm signal for AC OK and Battery Low (Via Relay)
- Built-in active PFC function
- Can be installed on DIN rail TS-35/7.5 or 15
- Cooling by free air convection
- Universal AC input / Full range
- 20 ~ +70°C wide operating temperature
- LED indication for Power on
- Operating altitude up to 5000 meters (Note.6)
- Battery low protection / Battery reverse polarity protection by fuse
- DC output voltage adjustable (±20%)
- 3 years warranty
- Protections: Short circuit / Overload / Over voltage / Over temperature
Description
DRC-180 is a 180W AC/DC DIN rail type security power supply series. In addition to the primary output, there is a charger output with a smaller rated current, enabling the backup power supply application the security access systems require. DRC-180 accepts the universal input between 90VAC and 264VAC, and supplies 13.8VDC and 27.6VDC at output, respectively. With the efficiency up to 90%, it can operate with air convection cooling under -20°C through 70°C. In addition to the key protection features such as overload protection, over voltage protection, battery low cut off, and battery reverse polarity protection (by fuse), the alarm signal for AC OK and battery low signaling is provided, via relay contact output, to facilitate the system design.
