PSC-35A

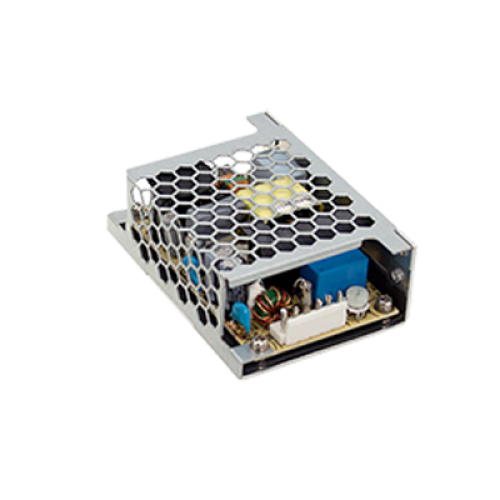

35.88W 13.8VDC 1.7A PCB Security Power Supply with UPS Function Please ring us to discuss a great price for this product.Product Features
- Cooling by free air convection
- Alarm signal for AC OK and Battery low
- 100% full load burn-in test
- 2 years warranty
- Protections: Short circuit / Overload / Over voltage
- Universal AC input / Full range
- 3.3"x2" compact PCB size
- Models with L-Bracket and cover available (PSC-35x-C, x=A,B)
- Battery low protection / Battery reverse polarity protection by fuse
Description
PSC-35 series is a 35W AC/DC security power supply, allowing the universal input range between 90VAC and 264VAC and incorporating the built-in PFC function. In addition to the primary output, there is a charger output, with a smaller rated current, providing the backup application the security access systems normally need. PSC-35 delivers an efficiency up to 86%; it can operate with air convection under -30°C through 70°C. This series is designed with thorough alarm features, including AC OK and battery low signaling; moreover, the relay contact is provided to facilitate users’ system designs. PSC-35 is available in the PCB type (3.3" x 2") or the enclosed type with L-Bracket and cover.
Style
- PCB
