PSC-60A

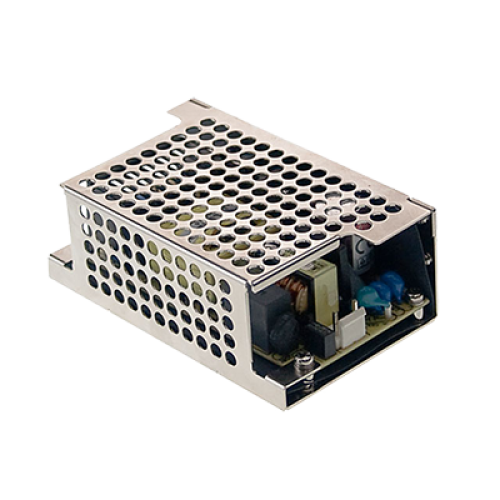

59.34W 13.8VDC 2.8A PCB Security Power Supply with UPS Function Please ring us to discuss a great price for this product.Product Features
- Models with L-Bracket and cover available (PSC-60x-C, x=A,B)
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Alarm signal for AC OK and Battery reverse low
- 100% full load burn-in test
- 2 years warranty
- Battery low protection / Battery reverse polarity protection by fuse
Description
PSC-60 Series is a miniature 4" x 2" PCB switching power supply for the security industry. To accompany the main output there is an additional charger output with smaller power rating to fulfill the special requirements of security monitoring or battery backup related applications. The high performance switcher design technology applied to this power supply allows for the small 4" x 2" profile to provide high efficiencys of 74% and high working temperatures of 70C ambient using only free air convection. PSC-60 has full TTL alarm signals short circuit overload and over voltage protection on the output side and battery polarity protection (by fuse) and battery low cut-off for the battery side. The inot also has global safety certificates per UL CUL TUV CE and CB.
Style
- PCB
