PSC-100A

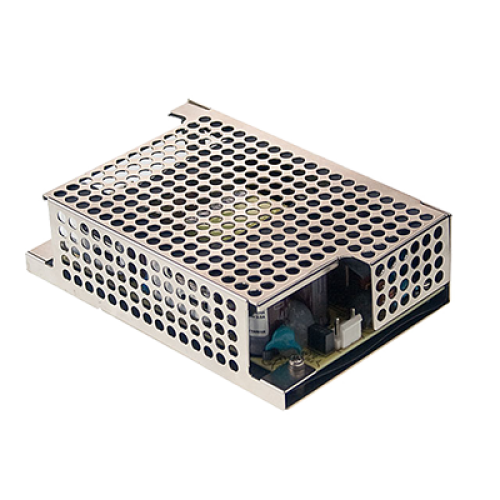

100.05W 13.8VDC 4.75A PCB Security Power Supply with UPS Function Please ring us to discuss a great price for this product.Product Features
- Protections: Short circuit / Overload / Over voltage
- Universal AC input / Full range
- 100% full load burn-in test
- Relay contact signal output for AC OK and Battery Low
- Cooling by free air convection
- 2 years warranty
- Models with L-Bracket and cover available (PSC-100x-C, x=A,B)
- 5"x3" compact size
- Battery low protection / Battery reverse polarity protection by fuse
Description
PSC-100 Series is a 100W AC/DC PCB type open frame power supply with additional charger output designed primarily for the security industry. The product features 90-264VAC Universal AC input voltage 13.8V and 27.6V output options and short circuit overload and over voltage protection. PSC-100 Series has been designed with battery low protection battery polarity protection via fuse and relay contact signal output for AC OK and Battery low making it ideal for security systems.
Style
- PCB
