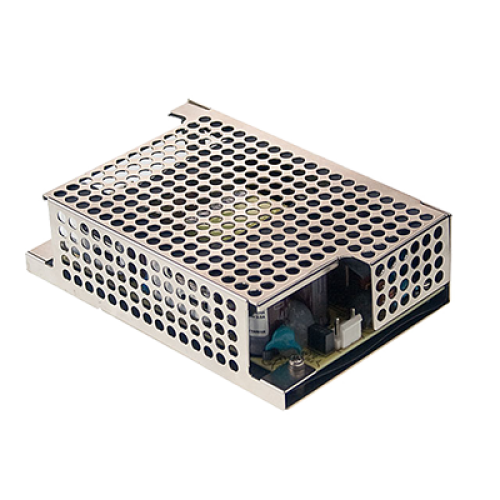

PSC-100B
100.74W 27.6VDC 2.4A PCB Security Power Supply with UPS Function Please ring us to discuss a great price for this product.Product Features
- Protections: Short circuit / Overload / Over voltage
- Universal AC input / Full range
- 2 years warranty
- Battery low protection / Battery reverse polarity protection by fuse
- 100% full load burn-in test
- Relay contact signal output for AC OK and Battery Low
- Cooling by free air convection
- Models with L-Bracket and cover available (PSC-100x-C, x=A,B)
- 5"x3" compact size
Description
PSC-100 Series is a 100W AC/DC PCB type open frame power supply with additional charger output designed primarily for the security industry. The product features 90-264VAC Universal AC input voltage 13.8V and 27.6V output options and short circuit overload and over voltage protection. PSC-100 Series has been designed with battery low protection battery polarity protection via fuse and relay contact signal output for AC OK and Battery low making it ideal for security systems.
Style
- PCB
