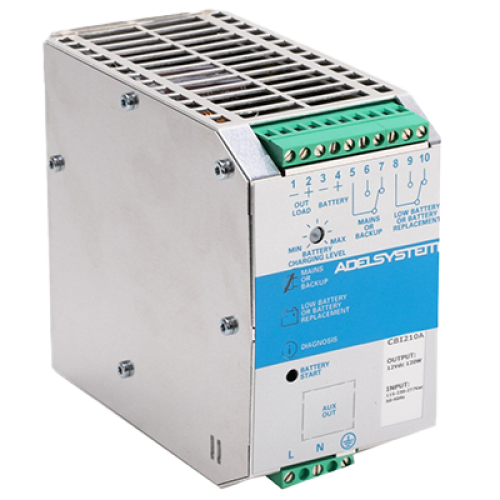

CB1210A
12V 10A DIN Rail 3 Level Battery Charger Please ring us to discuss a great price for this product.Product Features
- Compatible with Open Lead Acid, Sealed Lead Acid, Gel, and optional Ni-Cd batteries
- Dry-contact fault relays for integration with external systems
- 12VDC output with up to 10A charging current
- Auto cooling by convection, no moving parts
- Built-in battery diagnostics with status LEDs and blinking fault codes
- DIN-rail mounting with compact IP20 housing
- Wide AC input range: 90–305VAC
- High efficiency design with >89% typical efficiency
- Conforms to EN/IEC 62368-1, CE, UL, and EMC standards
- Protection against short circuit, reverse polarity, overload, and overvoltage
- Multi-stage IUoU charging with Boost, Trickle, and Recovery modes
Description
The CB1210A is a 12V 10A DC battery charger from Adel System, designed for panel or DIN-rail installation. This unit combines switching power supply technology with ADELSystem’s proprietary Battery Care philosophy to deliver efficient, automatic IUoU charging. It supports a wide range of battery chemistries including Open Lead Acid, Sealed Lead Acid, GEL, and optionally Ni-Cd.The CB1210A operates across a wide AC input range (90–305VAC) and provides real-time auto-diagnostics to detect common battery faults such as reverse polarity, disconnected battery, or internal short circuits. With selectable charging curves and protection features, it ensures optimal battery life and system reliability.
