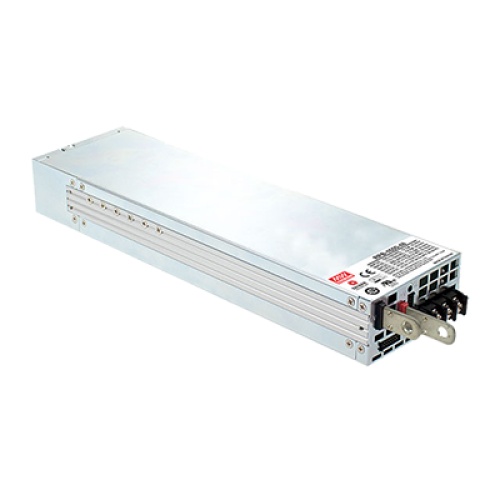

RPB-1600-48
1600W 47.5 ~ 58.8VDC 1U Intelligent Charger for 90 ~ 270Ah Capacity Batteries Please ring us to discuss a great price for this product.Product Features
- Built-in default 3 stage charging curves and programmable curve
- Built-in OR-ing FET
- 5 years warranty
- Active current sharing up to 4800W (2+1)
- Universal AC input / Full range (Withstand 300VAC surge input for 5 seconds)
- Built-in I²C interface, PMBus protocol (Optional CANBus protocol)
- Charger for lead-acid batteries (Gel, flooded and AGM) and Li-ion batteries (lithium iron and lithium manganese)
Description
The RPB-1600 is a highly efficient 1.6KW single output AC/DC charger with a remarkable power density of 25W/inch³, tailored for charging both lead-acid and lithium-ion batteries. It features sophisticated programmable charging curves to adapt to specific battery needs, supported by advanced communication protocols like PMBus and optional CANBus.Designed to handle diverse input conditions with a universal AC input and robust surge protection, the RPB-1600 is equipped with a built-in active PFC and forced air cooling system to ensure stable and efficient operation. It also offers comprehensive protection features, ensuring safety across various applications, from large-scale UPS systems to electrolysis and marine battery charging.
