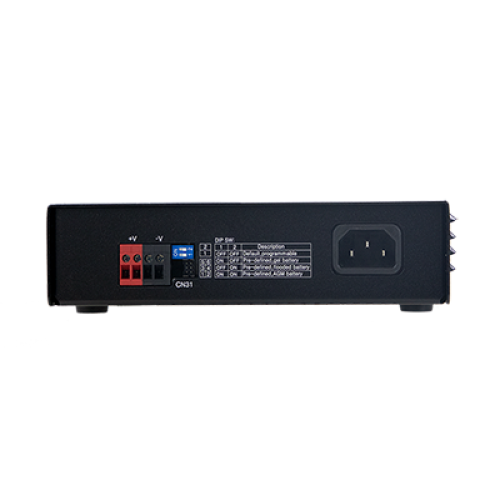

ENC-180-48
172.8W 48VDC Programmable Desktop Battery Charger for 15 ~ 35Ah Capacity Batteries Please ring us to discuss a great price for this product.Product Features
- Fanless design cooling by free air convection
- Universal AC input / Full range
- Charger for lead-acid batteries (flooded Gel and AGM) and li-ion batteries (lithium iron and lithium manganese)
- Built-in 3 stage programmable charging curve
- Built-in active PFC function
- Built-in temperature compensation function
- 3 years warranty
- Protection: Short circuit / Over voltage / Over temperature / Battery under voltage / Battery over voltage / Battery reverse polarity protection
Description
ENC-180-48 is a single output 172.8W 55.2V 3A AC/DC desktop type charger with 3 stage charging curve. In addition to the embedded pre-defined charging curves the default curve is programmable and thus able to accommodate different types of batteries such as lead-acid batteries (gel flooded and AGM) and li-ion batteries (lithium iron and lithium manganese). The rugged mechanical design along with high efficiency circuitry enables ENC-180-48 to operate between the ambient temperature range -30~+70 under free air convection.
