ENC-240-48

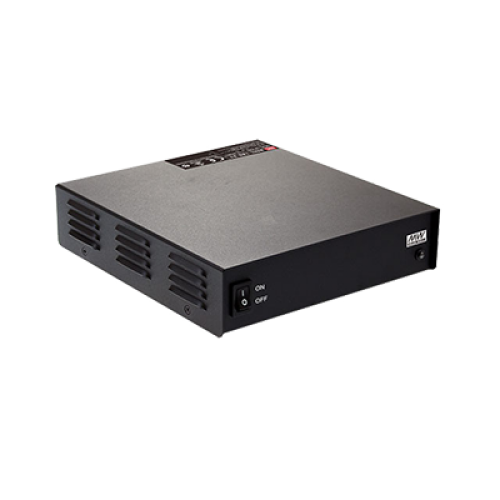

230.4W 48VDC Programmable Desktop Battery Charger for 15 ~ 45Ah Capacity Batteries Please ring us to discuss a great price for this product.Product Features
- Built-in 3 stage programmable charging curve
- Protection: Short circuit / Over voltage /Over temperature / Battery under voltage /Battery over voltage / Battery reverse polarity protection
- Fanless design cooling by free air convection
- 3 years warranty
- Built-in active PFC function
- Built-in temperature compensation function
- Charger for lead-acid batteries (flooded Gel and AGM) and li-ion batteries (lithium iron and lithium manganese)
- Universal AC input /Full range
Description
ENC-240-48 is a single output 230.4W 55.2V 4A desktop type charger with 3 stage charging curve. In addition to the embedded pre-defined charging curves the default curve is programmable and thus able to accommodate different types of batteries such as lead-acid batteries (gel flooded and AGM) and li-ion batteries (lithium iron and lithium manganese). The rugged mechanical design along with the high efficiency circuitry enables ENC-240-48 to operate between the ambient temperature range of -30~+70 under free air convection. ENC-240-48 provides the programmable function and MCU control that the users with a personal computer the smart battery charging programmer SBP-001 and its specific software are able to adjust the charging mode and parameters on the basis of different battery characteristics therefore ENC-240-48 is suitable to be applied to radio system backup solutions land mobile radio systems surveillance systems and electric scooter charger applications.
