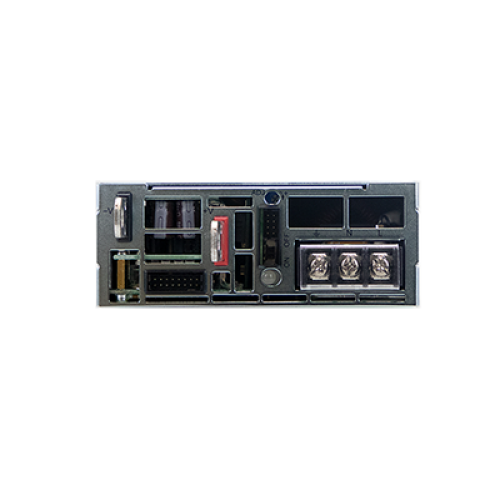

DBU-3200-24CAN
3200W Intelligent 24VDC Battery Charger With CANBus Protocol for 330 ~ 1000Ah Capacity Batteries Please ring us to discuss a great price for this product.Product Features
- Optional conformal coating
- Protections: Battery under voltage / Battery no connection / Short circuit / Over voltage / Over temperature
- Universal AC input / Full range
- Charger for lead-acid batteries (Gel, flooded and AGM) and Li-ion batteries (lithium iron and lithium manganese)
- Forced air cooling by built-in thermal controlled DC fans
- Active current sharing up to 6400W (1+1)
- Built-in OR-ing FET
- Output voltage and current programmable
- 5 years warranty
- Built-in active PFC function
- Built-in default 3 stage charging curves and programmable curve
- Built-in I²C interface, PMBus protocol (Optional CANBus protocol)
Description
DBU-3200 is a 3200W single output AC/DC enclosed charger in 1U low profile with high power density, 37W/inch³. It is an intelligent charger that has pre-loaded programmable charging curves for different types of lead-acid and li-ion batteries. Output programmable function allows user to adjust the charging voltage and current via the built-in potentiometer or PMBus protocol. Various protection mechanisms as well as the temperature compensation function are provided to assure normal and safe system operation.
