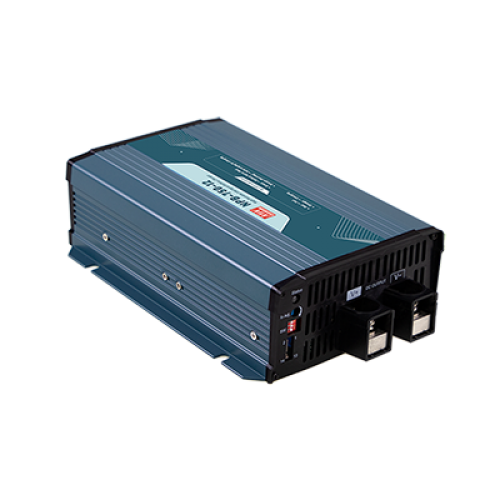

NPB-750-24

The NPB-750 is a miniaturised, versatile, and ultra-wide voltage intelligent charger. It utilises a fully digital control design with automatic battery voltage detection technology, with key features including intelligence, versatility, user-friendliness, safety, and compactness. The series has four models with output voltage ranges of 10.5- 21V, 21- 42V, and 42- 80V, respectively. The charging voltage range of each model is wide enough to cover a variety of different battery voltages and battery chemistries, and there is a built-in intelligent voltage detection charging mode (Note: This mode is set to OFF by factory default and is suitable for lithium batteries with BMS only). The NPB-750 can pair with MEAN WELL's SBP-001 programmer for digital configuration, such as adjusting charging voltage/current and setting charging cycle time to protect battery lifetime. Through the user-friendly DIP S.W. on the front panel, the user may also directly adjust the 2/3 stage charging, current (50-100%), and select between the four types of preset charging curves. In addition, a CANBus communication protocol is built in to meet professional applications, which allows remote controlling and monitoring for the status of the charger. In terms of safety, it has intelligent detection for proper battery voltage and connection, as well as protection from reverse polarity. It passes IEC/EN/UL62368-1 and household appliances EN60335-1/-2-29 dual safety(NFC models only pass information IEC/EN/UL62368-1 safety certification) and 3-year warranty against manufacturing defects. The NPB-750 is truly an intelligent, safe, and reliable universal charger with outstanding cost performance.
