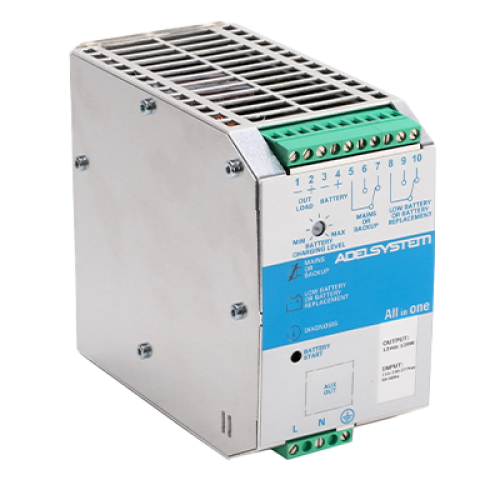

CBI2410A
24V 10A Modbus RTU Enabled All-in-One DC-UPS Please ring us to discuss a great price for this product.Product Features
- Automatic battery management with IUoU charging and real-time diagnostics
- Battery deep discharge protection
- Conforms to EN/IEC/UL 61010 and 62368 safety standards
- Prioritises load over battery during mains operation
- Supports Modbus RTU over RS485 for remote monitoring
- Designed for DIN rail mounting
- Fault signalling via LEDs and dry contact relay
- Combines power supply, battery charger, battery care, and UPS in one unit
- LED indicators for output, battery, and input status
Description
The CBI2410A is an integrated 24V 10A DIN rail-mountable DC-UPS that combines a power supply, battery charger, and monitoring module in a single enclosure. Designed to ensure continuous 24V DC power to connected equipment, it delivers up to 10A output for the load and a matching 10A battery charging current. The unit features ADELSystem’s advanced Battery Care algorithm for reliable IUoU charging, protecting the battery and extending its service life.With wide input voltage support from 90–305VAC and 120–430VDC, the CBI2410A offers installation flexibility across different power environments. Built-in Modbus RTU communication over RS485 enables remote monitoring and diagnostics, making it suitable for industrial and building automation systems. The device automatically prioritises power to the load and switches to battery backup during mains failure without interruption.Protective functions include reverse polarity protection, deep battery discharge prevention, and fault relay signalling. LED indicators provide clear visual feedback for input, output, and battery status. Compliant with international safety standards and designed for DIN rail mounting, the CBI2410A is a reliable, space-saving solution for 24V DC power continuity.
