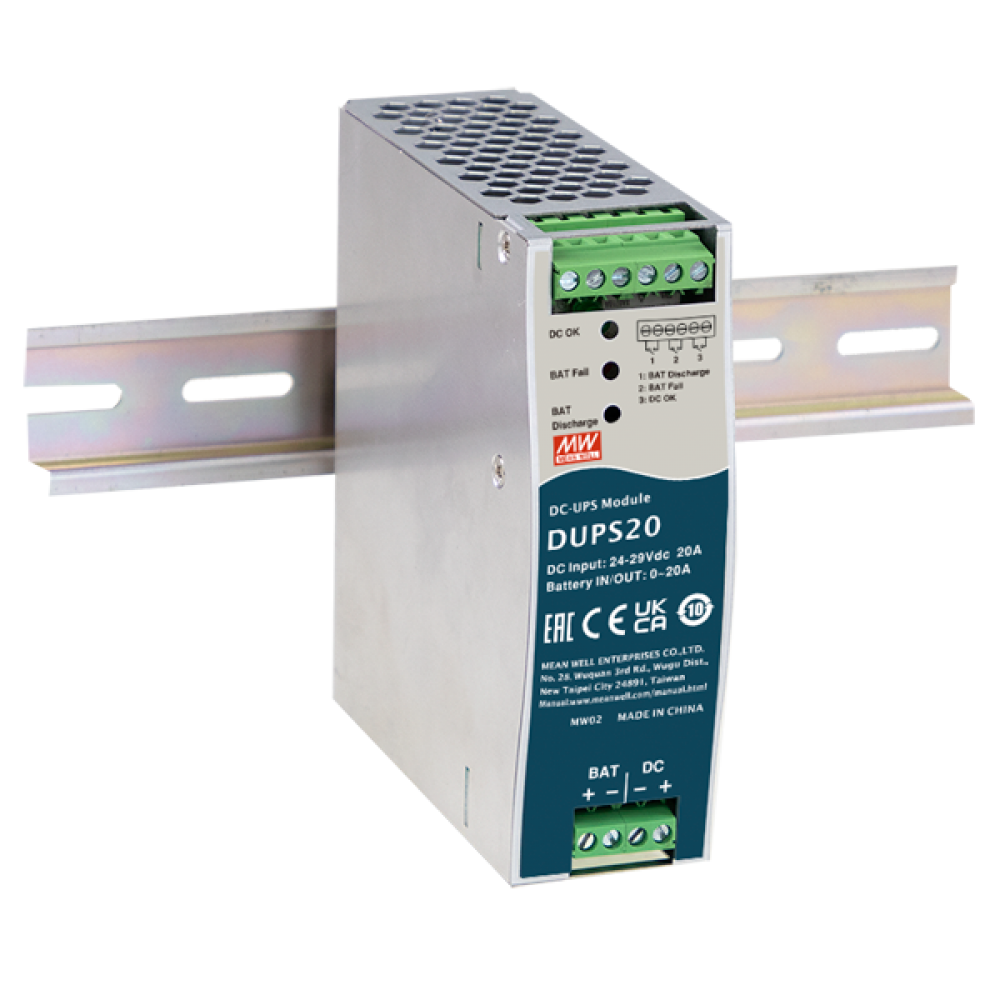

DUPS20
24V 20A DIN Rail Uninterruptible DC-UPS Module Please ring us to discuss a great price for this product.Product Features
- Uninterruptible DC-UPS controller for 24V systems up to 20A
- Parallel connection to the DC bus with power supply, DC-UPS module, battery and load
- 2A battery charging current
- Supports 24V lead-acid batteries from 4Ah to 135Ah
- Complete diagnostic monitoring for DC BUS OK, battery discharge and battery failure
- LED indication for operating and battery status
- Battery reverse-polarity, short-circuit, over-discharge and over-discharge-current protection
- Automatic low-voltage battery disconnect below 21V
- Fanless cooling by free-air convection
- Compact 40mm-wide DIN rail design with 3-year warranty
Description
The MEAN WELL DUPS20 is a 24V DIN rail uninterruptible DC-UPS module designed to maintain continuous operation of critical DC-powered equipment during mains or power supply interruptions. Installed alongside a DC power supply and external 24V lead-acid battery, the DUPS20 automatically transfers the connected load to battery power when the normal supply is lost, helping prevent interruption to control, automation and monitoring systems. Rated for loads up to 20A, the module supports 4Ah to 135Ah lead-acid batteries and provides a 2A charging current. Integrated diagnostics monitor DC bus status, battery failure and battery discharge, with dedicated relay contacts and green, red and yellow LED indicators providing clear system-status information. Protection includes battery reverse polarity, short circuit, over-discharge current and deep-discharge protection, with battery discharge disconnected below 21V. The fanless 40mm-wide enclosure mounts on standard DIN rail and operates from -30°C to +70°C.
