CBI2420A
24V 25A Modbus RTU Enabled All-in-One DC-UPS Please ring us to discuss a great price for this product.Product Features
- IUoU battery charging curve with 5-stage smart charging algorithm
- Short circuit, overload, reverse polarity, and overvoltage protection
- DIN rail mounting, compact IP20 housing
- Fault diagnostics via LEDs, dry contact relay outputs, and ADELBus
- All-in-one DC-UPS with integrated power supply, battery charger, backup module, and diagnostics
- Modbus RTU communication via RS485 for monitoring and control
- Prioritised load power: load first, then battery charging
- Supports sealed lead-acid and LiFePO₄ batteries
Description

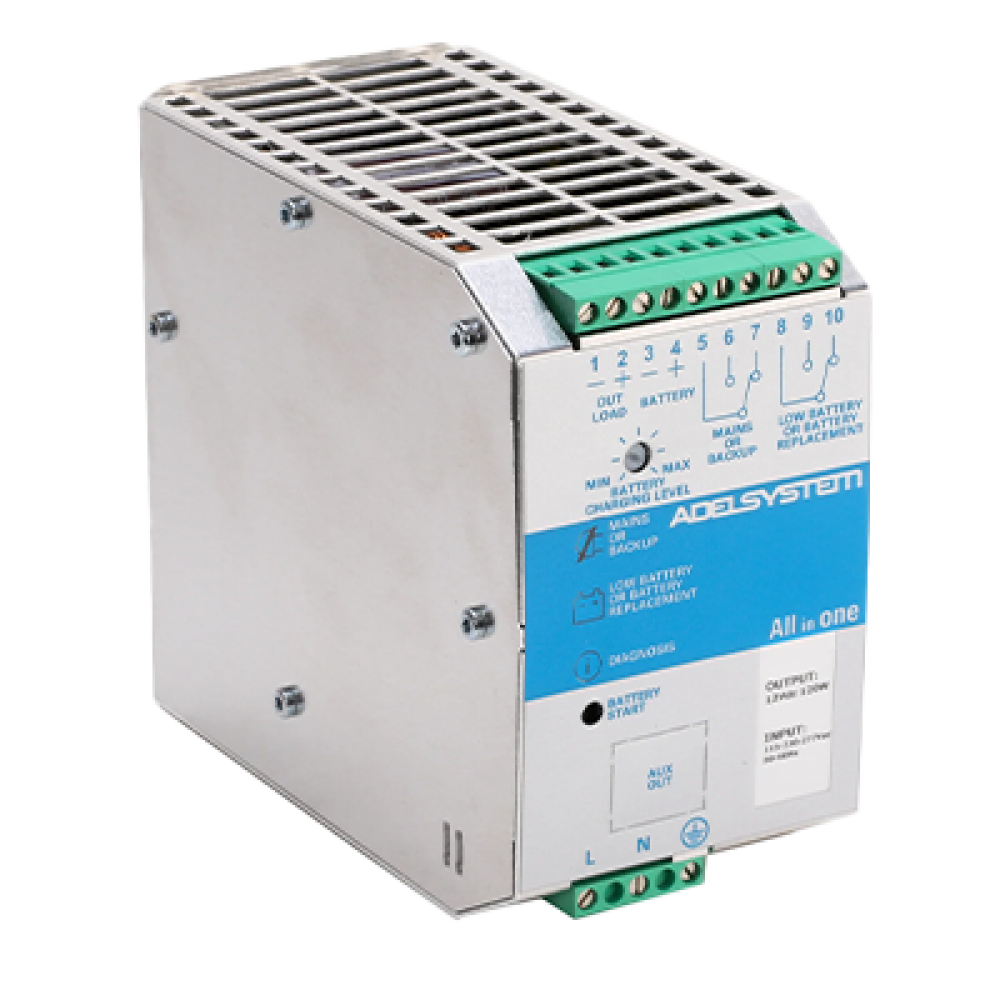

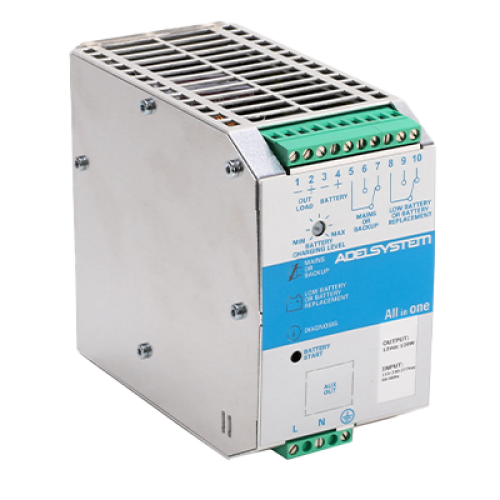

The CBI2420A is a 24V 25A DIN rail-mounted All-in-One DC-UPS, combining a power supply, battery charger, backup module, and diagnostic interface into a single device. It is designed to provide seamless power continuity for 24VDC systems with automatic switchover from mains to battery during power failures. Smart IUoU battery charging supports sealed lead-acid and LiFePO₄ batteries with a configurable 5-stage algorithm, including battery health diagnostics and temperature compensation.The CBI2420A supports Modbus RTU communication via RS485 and ADELBus, allowing integration into supervisory systems for remote monitoring, diagnostics, and control. Fault signalling is provided through LED indicators and relay outputs. With a wide operating temperature range, reverse polarity protection, and prioritised load management, it ensures reliable operation in demanding environments.It’s an ideal solution for automation, telecom, access control, and industrial systems that require secure and monitored DC power backup.
