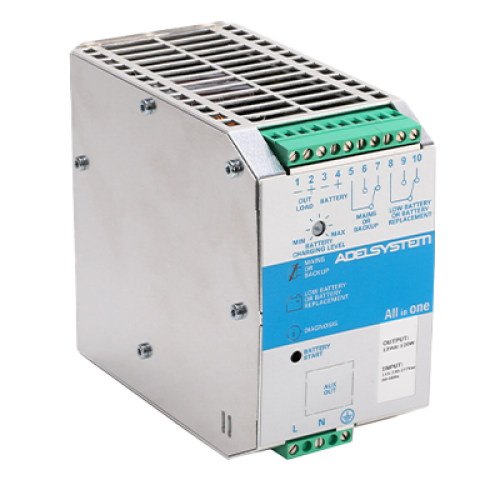

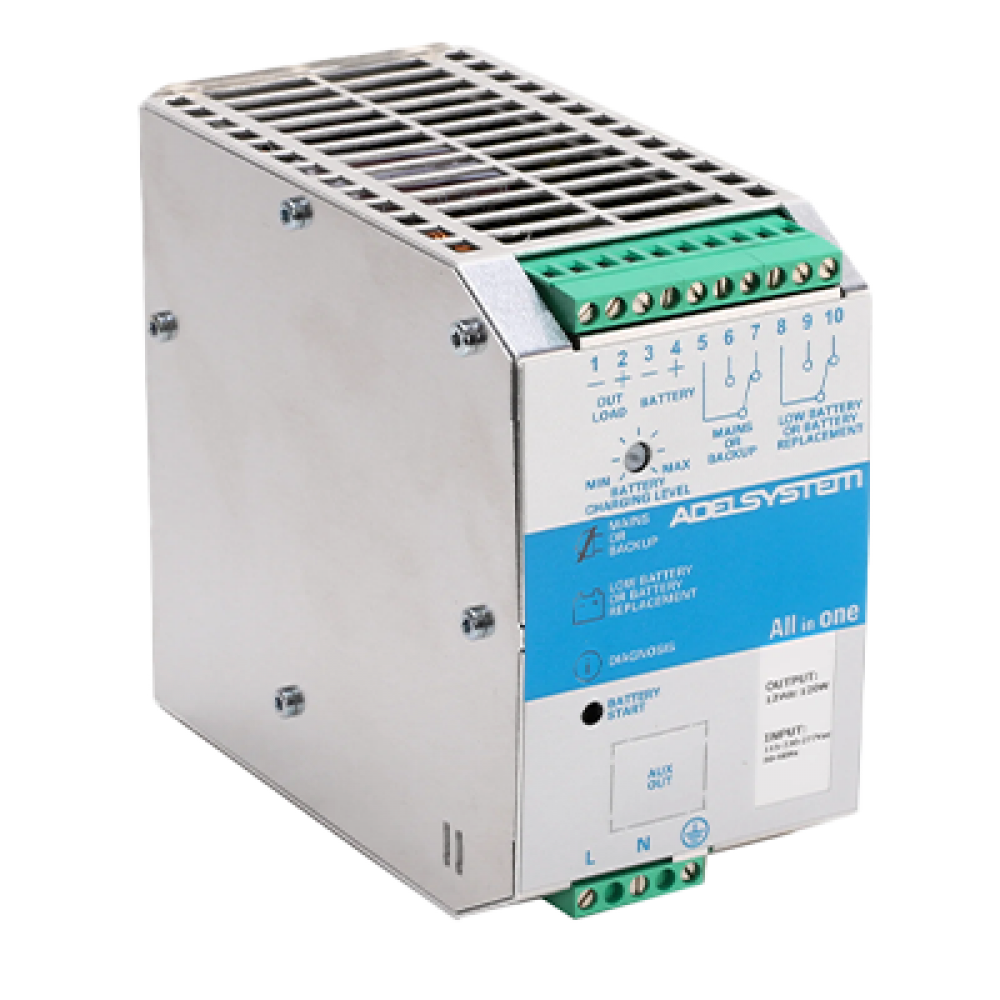

CBI243A
24V 3A Modbus RTU Enabled All-in-One DC-UPS Please ring us to discuss a great price for this product.Product Features
- All-in-One DC-UPS with integrated PSU, battery charger, and backup module
- Real-time battery diagnostics with LED blink codes for faults
- Short-circuit, reverse polarity, overload, and thermal protection built-in
- DIN-rail mountable compact IP20 design
- Four-stage IUoU charging curve with Boost, Float, and Recovery modes
- Signal outputs for mains/backup status, battery condition, and system faults
- Supports multiple battery types: Lead Acid, Gel, Li-ion, and Ni-Cd (via jumper)
Description
The CBI243A is a 24V 3A All-in-One DC-UPS that integrates a power supply, battery charger, and backup module into a compact DIN-rail mountable housing. Designed to optimise load and battery power distribution, it prioritises load supply first, with smart redirection of available current. It supports multiple battery chemistries—Open Lead Acid, Sealed Lead Acid, Gel, Ni-Cd (optional), and Li-ion—configured via onboard jumpers.Featuring ADELSystem’s advanced Battery Care technology, the CBI243A ensures optimal charging with a four-stage IUoU algorithm (Boost, Float, Recovery, and Charge Recovery), along with real-time diagnostics. These include LED fault indication for issues like battery sulphation, reversed polarity, or disconnection. It also includes dry contact fault signalling for system status, battery faults, and backup activation.With a wide input range of 90–305VAC, compact footprint (L135 x W65 x H115mm), and protection features such as short-circuit, reverse polarity, and thermal shutdown, the CBI243A is a versatile and reliable DC-UPS for 24V battery-backed systems.
