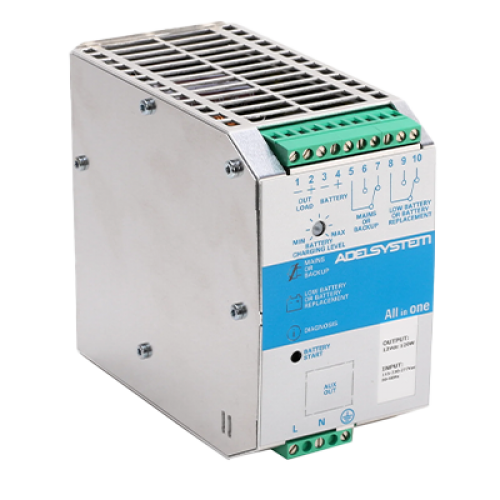

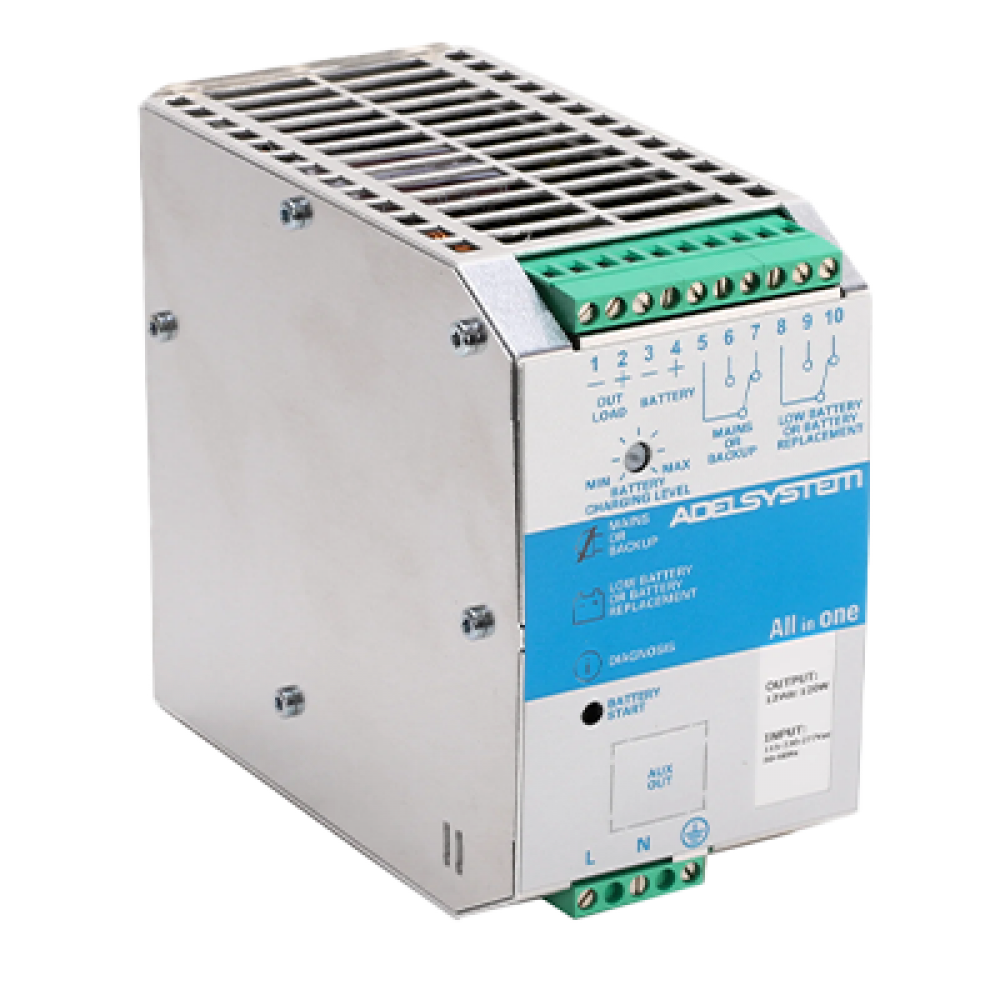

CBI245A
24V 5A Modbus RTU Enabled All-in-One DC-UPS Please ring us to discuss a great price for this product.Product Features
- DIN-rail mount, IP20 protection, compact footprint
- Signal outputs for main/backup mode, battery faults, low voltage
- IUoU 4-stage charging with Battery Care diagnostics
- Smart load-first power allocation with up to 15A peak output (4 sec)
- Modbus communication supported
- All-in-One DC-UPS with integrated power supply, charger, and monitoring
- Input inrush protection and thermal protection included
- Compatible with Lead Acid, NiCd, and Li-Ion batteries
- Dry contact relay alarms for remote status monitoring
- Real-time battery fault diagnostics (sulfation, short circuit, reversed polarity)
Description
The CBI245A is a compact All-in-One DC-UPS that integrates a 24V power supply, battery charger, backup module, and battery monitoring system into a single DIN-rail mounted unit. It delivers 5A to both load and battery, with smart power prioritisation that always favours the connected load. The unit features automatic IUoU 4-stage charging, real-time battery diagnostics (Battery Care), and jumper-configurable curves for Lead Acid, NiCd, and Li-Ion batteries.The CBI245A supports Modbus communication, enabling remote monitoring and system integration. Protective features include reverse polarity, short-circuit detection, thermal shutdown, and relay outputs for battery or system faults. Designed for 115–277VAC operation, the unit can handle load currents up to 15A during peak conditions. DIN-rail mountable and IP20 rated, it is suited for secure and space-saving installation.
