CBI485A
48V 5A Modbus RTU Enabled All-in-One DC-UPS Please ring us to discuss a great price for this product.Product Features
- Thermal protection, short-circuit and overload protections included
- 5-stage IUoU smart battery charging: Boost, Bulk, Absorption, Float, Recovery
- Compatible with Lead Acid, Gel, Sealed, Ni-Cd, and Li-Ion batteries
- RJ45 ports for temperature probe, remote display, and daisy-chaining
- Dry contact relay outputs for fault, mains, backup, and low battery alarms
- Start from battery capability using optional RTCONN cable
- Automatic diagnostics: sulfation, shorted cells, reverse polarity, and battery status
- Priority-based power allocation: load first, battery second
- Front-facing LED blink codes for battery fault diagnosis
- All-in-One DC-UPS with integrated 48V 5A power supply, charger, and backup module
Description

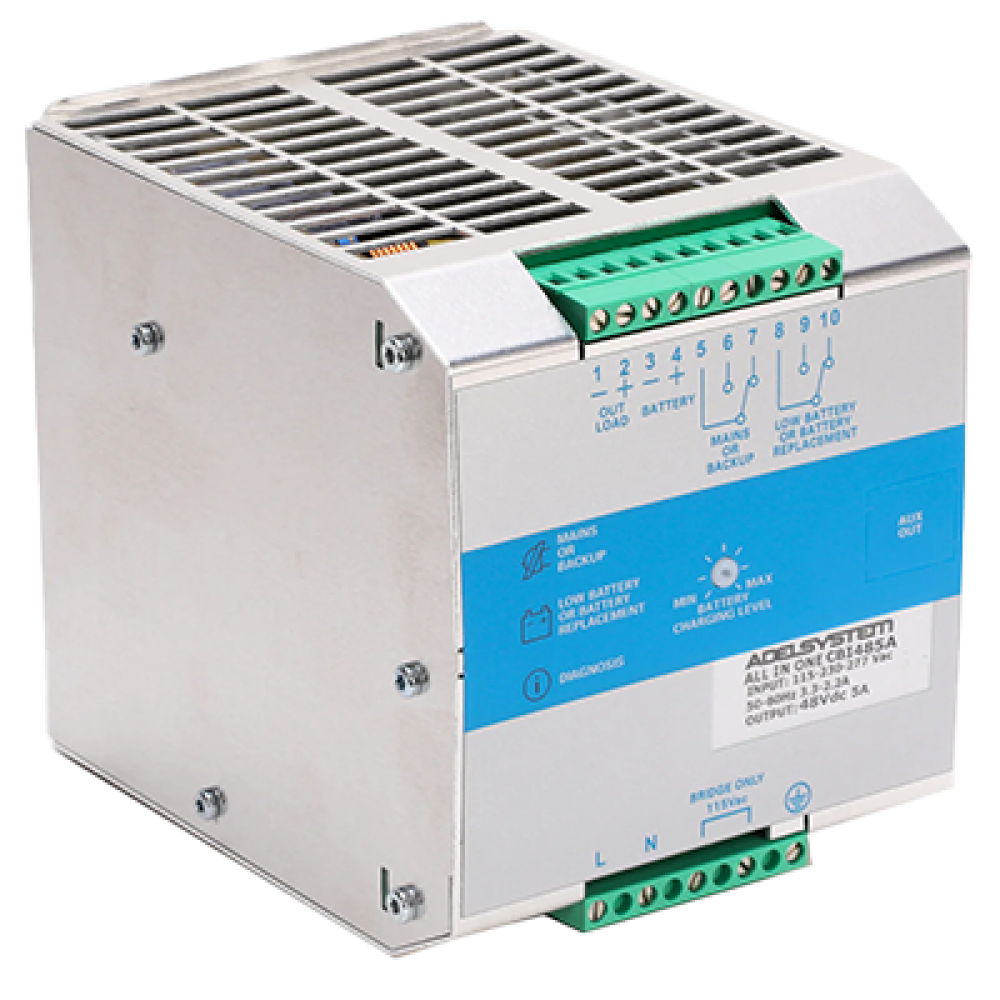

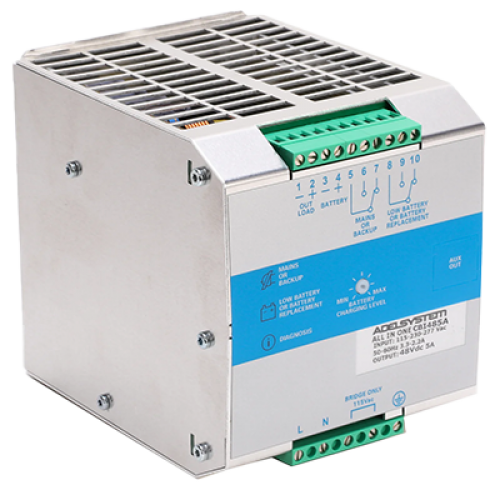

The CBI485A is a compact 48V 5A all-in-one DC-UPS that combines a power supply, battery charger, and backup module in a single DIN-rail mountable unit. It uses ADELSystem's smart Battery Care algorithm for 5-stage IUoU charging—Boost, Bulk, Absorption, Float, and Recovery—providing safe, efficient, and automated charging for a wide range of battery types including Lead Acid, Li-Ion, and Ni-Cd.With automatic load prioritisation, the unit supplies power to the load first, then to the battery, avoiding the need to oversize the power supply. The system features short-circuit and reverse polarity protection, real-time battery diagnostics with LED blink codes, and dry contact relays for remote signalling. It supports continuous operation with or without battery backup and can deliver up to 15A to the load during peak demand.Monitoring and alarms are available via signal relays and front-facing diagnostic LEDs. External accessories such as temperature sensors and remote displays are supported via RJ45 ports.
