CBI60048A
600W 48V Ethernet Enabled All-in-One DC-UPS Please ring us to discuss a great price for this product.Product Features
- Built‑in Ethernet: Modbus TCP/IP, SNMP v3, HTTPS + ADELBus support
- IUoU smart charging with 5-stage algorithm & Battery Care diagnostics
- Low line AC (90–135VAC) requires bridging L and N terminals during installation
- 48VDC output with up to 12.5A load and battery charging current
- Maintenance-free automatic power prioritisation: load first, then battery
- Protection: short-circuit, reverse polarity, and fault signalling via relays & LEDs
- 600W All-in-One DC-UPS with integrated power supply, battery charger, and monitoring
- DIN-rail housing, compact IP20 design
Description

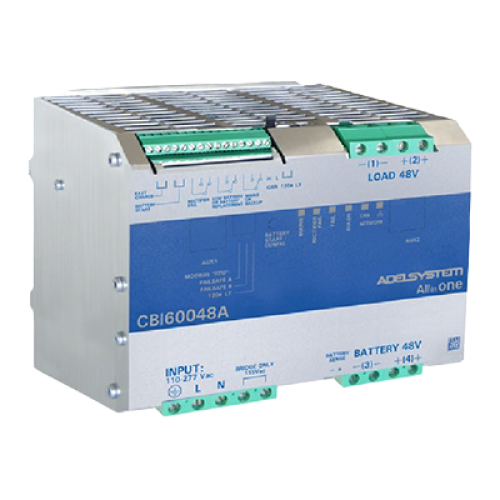

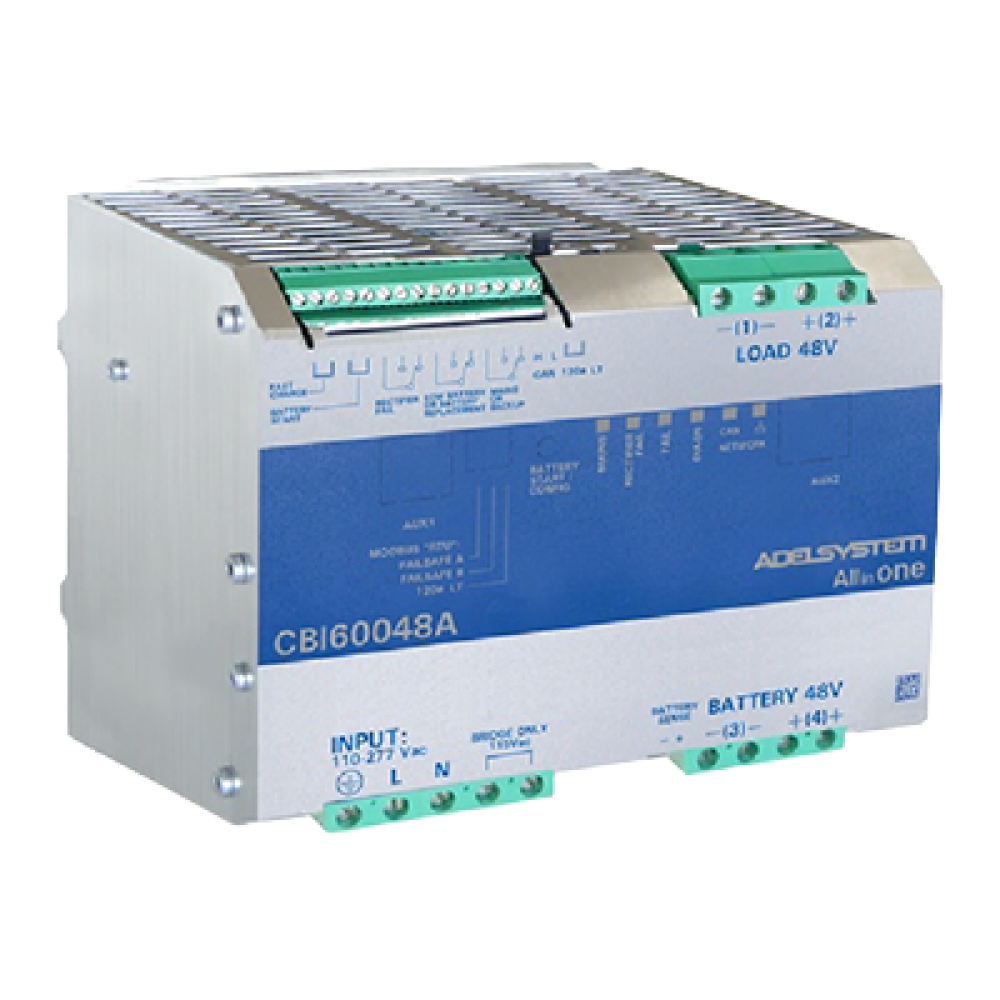

The CBI60048A is a 600W All-in-One DC-UPS module that combines a power supply, battery charger, backup module, and battery tester in a single DIN-rail unit. Designed for 48VDC applications, it delivers up to 12.5A to the load and features smart battery charging and monitoring. Integrated Ethernet protocols—including Modbus TCP/IP, SNMPv3, and HTTPS—enable full remote diagnostics, configuration, and control. The CBI60048A supports lead-acid, gel, and Ni-Cd battery types and offers five-stage charging with real-time diagnostics to extend battery life and reliability. Optimised for compact industrial environments, it ensures safe and continuous DC power without requiring power doubling, even under variable loads.
