DRF-12V120W1GBA

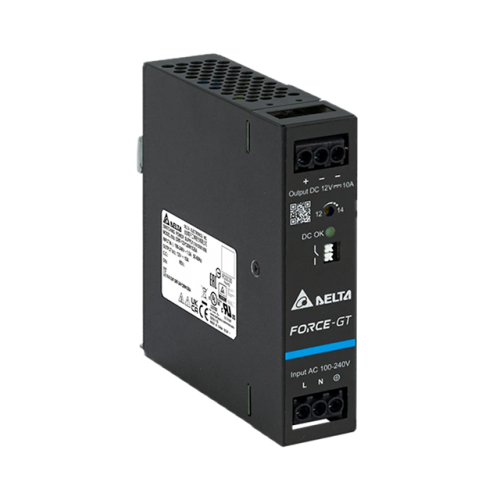

120W 10A 12VDC Single Phase DIN Rail Power Supply - Screw Terminal Please ring us to discuss a great price for this product.Product Features
- Available with screw-terminal or spring-clamp connections
- High efficiency up to 96%
- Surge capacity up to 6kV with SPD
- Constant-current mode for charging and demanding DC loads
- Wide operating temperature range down to -40°C
- Full rated output at elevated ambient temperatures
- DC OK relay contact and LED status indication
- Conformal-coated electronics for improved environmental protection
- Short-circuit, overload and over-voltage protection
- AC and DC input capability across the Force-GT range
Description
The Delta DRF-12V120W1GBA delivers 120W at 12VDC and 10A for industrial automation, control and machinery applications. It accepts 90–264VAC or 127–375VDC input and provides an adjustable 12–14VDC output. Typical efficiency reaches 93% at 230VAC. Screw terminals provide conventional panel wiring, while constant-current overload operation, short-circuit hiccup recovery and over-voltage protection support reliable system performance. The unit also provides DC OK relay and LED indication, conformal coating and surge capacity up to 6kV when used with SPD protection. Full rated load is supported up to +60°C, with an overall operating range of -40°C to +70°C. Dimensions are 123.6 × 30 × 116.8mm.
