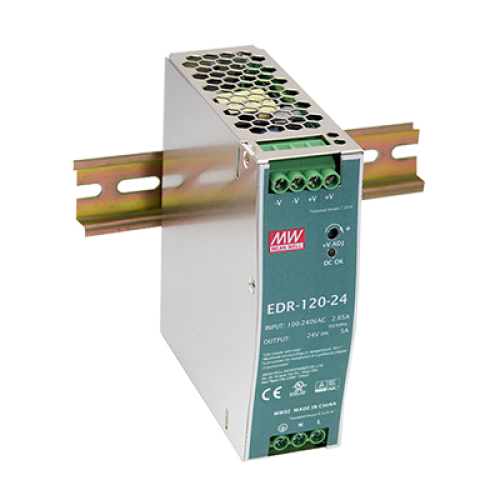

EDR-120-24
120W 24VDC 5A Industrial DIN Rail Power Supply Please ring us to discuss a great price for this product.Product Features
- Can be installed on DIN rail TS-35/7.5 or 15
- Universal AC input / Full range
- UL 508 (industrial control equipment) approved
- 2 years warranty
- Protections: Short circuit / Overload / Over voltage / Over temperature
- BS EN/EN61000-6-2 (BS EN/EN50082-2) industrial immunity level
- 100% full load burn-in test
- Cooling by free air convection
Description
EDR-120 is one economical slim 120W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 40mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 90VAC to 264VAC and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current. EDR-120 is designed with metal housing that enhances the unit's power dissipation. With working efficiency up to 88.5%, the entire series can operate at the ambient temperature between -20°C and 60°C under air convection. It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV BS EN/EN62368-1, and etc.) make EDR-120 a very competitive power supply solution for industrial applications.
