NDR-120-24

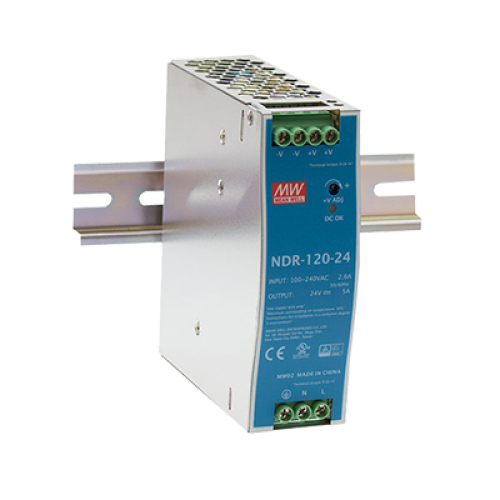

120W 24VDC 5A Industrial Din Rail Power Supply (NDR-120-24) Please ring us to discuss a great price for this product.Product Features
- 100% full load burn-in test
- UL 508 (industrial control equipment) approved
- Universal AC input / Full range
- 3 years warranty
- Can be installed on DIN rail TS-35/7.5 or 15
- Protections: Short circuit / Overload / Over voltage / Over temperature
- BS EN/EN61000-6-2 (BS EN/EN50082-2) industrial immunity level
- Cooling by free air convection
Description
NDR-120 is one economical, slim 120W DIN rail power supply series, adapted to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed to be 40mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 90VAC to 264VAC and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current. NDR-120 is designed with a metal housing that enhances the unit's power dissipation. With working efficiency up to 89%, the entire series can operate at the ambient temperature between -20°C and 70°C under air convection. It is equipped with a constant current mode for overload protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV BS EN/EN62368-1, etc.) make NDR-120 a very competitive power supply solution for industrial applications.
