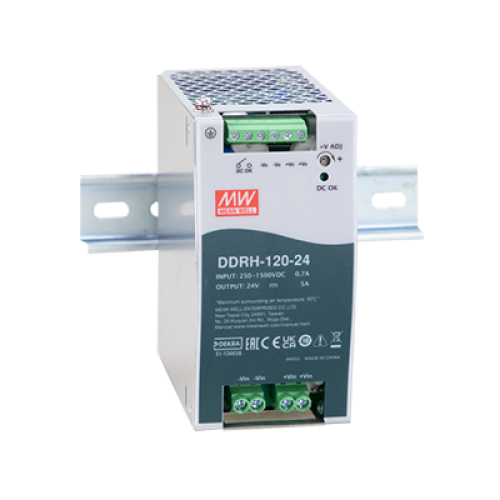

DDRH-120-24
120W 250 ~ 1500VDC Input 24VDC Output DIN Rail Converter Please ring us to discuss a great price for this product.Product Features
- 63mm slim width
- 3 years warranty
- 250~1500Vdc 6:1 ultra-wide input range
- Operating altitude up to 5000 meters
- Withstand 1700Vdc surge input for 10 seconds
- 40~+80°C ultra-wide operating temperature (> +50°C derating)
- 4KVac I/O high isolation (Reinforced isolation)
Description
DDRH-120 series is a 250~1500Vdc high-reliability ultra-high input DIN rail type DC-DC converter which can supply a stable working voltage for the load. It is suitable to be mounted on TS-35/7.5 or 15 rails. Main features are as follows: easy to install DIN rail type, narrow width (63mm) in slim design, -40~+80°C wide range operating temperature, 4kVAC high isolation voltage, operation at 5000m altitude, high efficiency, low ripple & noise, complete protections and so on. DDRH-120 is compliant with UL1741 and BS EN/EN61000-6-2 standard regarding immunity for industrial environments. It is suitable for industrial automation, surveillance, telecommunication and can be widely deployed in the applications of new energy generation, such as solar power, and windmill power generation, for instance, photovoltaic power systems, high voltage inverting, DC bus centralised application, ESS, charging pile, railway and so forth.
