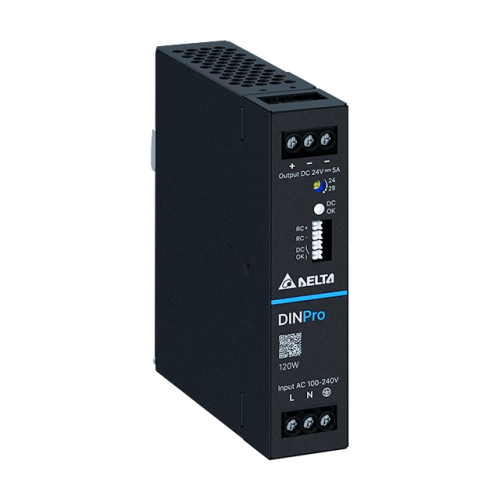

DRF-24V120W1PBA
120W 5A 24VDC High Reliability DIN Rail Power Supply Please ring us to discuss a great price for this product.Product Features
- 85–277VAC or 100–400VDC wide input range
- Withstands 305VAC input for 60 seconds
- Power Boost: 150% for 5 seconds, 200% for 50ms and 500% for 5ms
- Full-load operation up to +60°C
- Wide -40°C to +80°C operating temperature range with derating
- DC OK relay contact and LED status indication
- Remote ON/OFF control
- Conformal coating for additional PCB protection
- Short-circuit, overload and over-voltage protection
- SEMI F47 compliance, Class B EMC performance and 5-year warranty
Description
The Delta DRF-24V120W1PBA provides regulated 24VDC output at 5A with 120W rated power for industrial automation, control panels and OEM equipment. Its wide 85–277VAC or 100–400VDC input supports flexible system integration and withstands 305VAC for 60 seconds. Power Boost capability provides 150% output for five seconds, 200% for 50ms and up to 500% for 5ms, helping support equipment with demanding transient loads. The output voltage can be adjusted from 24V to 29V, while typical efficiency reaches 92.5% at 230VAC. Remote ON/OFF, DC OK relay and LED indication, conformal coating and comprehensive protection support dependable operation. The compact DIN rail enclosure is only 30mm wide.
