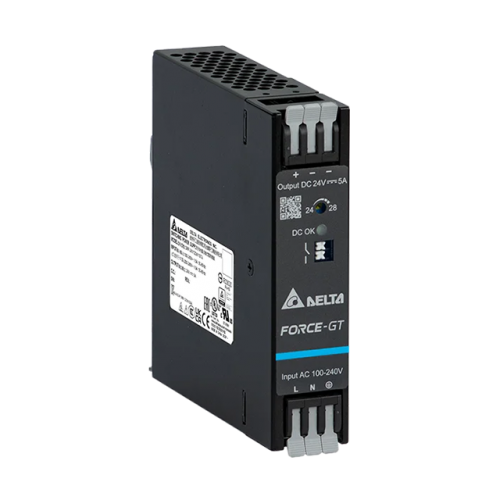

DRF-24V120W1GTA
120W 5A 24VDC Single Phase DIN Rail Power Supply - Spring Clamp Please ring us to discuss a great price for this product.Product Features
- High efficiency up to 96%
- Surge capacity up to 6kV with SPD
- Constant-current mode for charging and demanding DC loads
- Wide operating temperature range down to -40°C
- Full rated output at elevated ambient temperatures
- DC OK relay contact and LED status indication
- Conformal-coated electronics for improved environmental protection
- Short-circuit, overload and over-voltage protection
- AC and DC input capability across the Force-GT range
- Available with screw-terminal or spring-clamp connections
Description
The Delta DRF-24V120W1GTA delivers regulated 24VDC at 5A with 120W rated power and spring-clamp terminals for efficient control-panel installation. Its input range covers 90–264VAC and 127–375VDC, with adjustable output from 24V to 28V. Typical efficiency reaches 93.5% at 230VAC. Constant-current overload operation combines with short-circuit hiccup recovery and over-voltage protection to support dependable system operation. DC OK relay and LED indication provide status feedback, while conformal coating enhances PCB protection. The compact unit is 30mm wide and operates from -40°C to +70°C.
