DRF-24V120W3GBA
120W 5A 24VDC Three/Two Phase DIN Rail Power Supply - Screw Terminal Please ring us to discuss a great price for this product.Product Features
- Available with screw-terminal or spring-clamp connections
- AC and DC input capability across the Force-GT range
- Short-circuit, overload and over-voltage protection
- Conformal-coated electronics for improved environmental protection
- DC OK relay contact and LED status indication
- Full rated output at elevated ambient temperatures
- Wide operating temperature range down to -40°C
- Constant-current mode for charging and demanding DC loads
- Surge capacity up to 6kV with SPD
- High efficiency up to 96%
Description

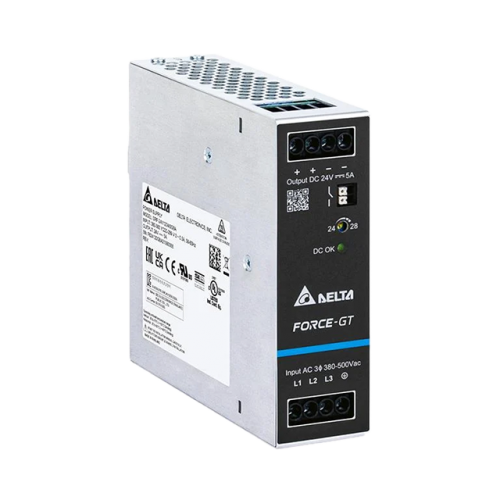

The Delta DRF-24V120W3GBA delivers 24VDC at 5A with 120W rated output for industrial control systems supplied from higher-voltage three-phase, two-phase or DC networks. Input capability covers 3 × 320–575VAC, 2 × 340–575VAC and 450–800VDC. The output can be adjusted from 24V to 28V, while typical efficiency reaches 87.5% at three-phase 400/500VAC. The IP20 design includes screw terminals, constant-current overload operation, short-circuit hiccup recovery and over-voltage auto-recovery. DC OK relay and LED indication, conformal coating, cold-start capability at -40°C and surge capacity up to 6kV with SPD support demanding industrial installations.
