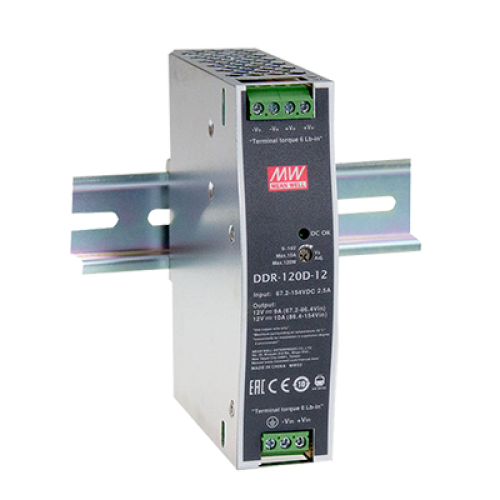

DDR-120D-12
120W 67.2 ~ 154VDC Input 12VDC Output DIN Rail Converter Please ring us to discuss a great price for this product.Product Features
- 2:1 wide input range
- Can be installed on DIN rail TS-35/7.5 or 15
- Compliance to BS EN/EN50155 and BS EN/EN45545-2 railway standard
- Width only 32mm
- 3 years warranty
- 40 ~ +70°C wide working temperature
- 150% peak load capability
Description
DDR-120 series is a 120W DIN Rail type DC-DC converter with main features including DIN rail-type easy installation, ultra slim width (32mm), 2:1 wide input voltage, fanless design, -40~+70°C wide operating temperature, 4KVdc I/O isolation, 150% peak load, adjustable output voltage and full protective functions.This series of models has various input options: 9~18V / 16.8~33.6V / 33.6~67.2V / 67.2~154V and various output options: 12V / 24V / 48V, and can be used for industrial & railway control, security control, communication systems and other fields. Suitable applications include a DC buck/boost regulator, increasing the system insulation level and voltage drop compensation along the cable.
