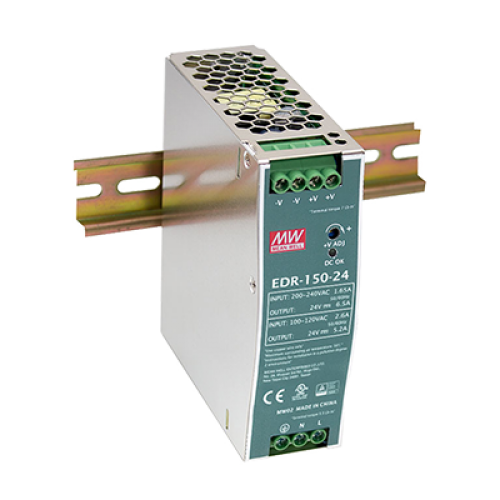

EDR-150-24
156W 24VDC 0 ~ 6.5A Industrial Din Rail Power Supply Please ring us to discuss a great price for this product.Product Features
- Can be installed on DIN rail TS-35/7.5 or 15
- 100% full load burn-in test
- 2 years warranty
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
- UL 508 (industrial control equipment) approved
- Universal AC input / Full range
Description
EDR-150-24 is one economical slim DIN rail power supply series, providing up to 156W at 230VAC input. This series is adapted to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed to be 40mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 90VAC to 264VAC and conforms to BS EN/EN61000-3-2(≤80% Load), the norm the European Union regulates for harmonic current. EDR-150-24 is designed with a metal housing that enhances the unit's power dissipation. With working efficiency up to 87%, the entire series can operate at the ambient temperature between -20°C and 60°C under air convection. It is equipped with a constant current mode for overload protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV BS EN/EN62368-1, etc.) make EDR-150-24 a very competitive power supply solution for industrial applications.
