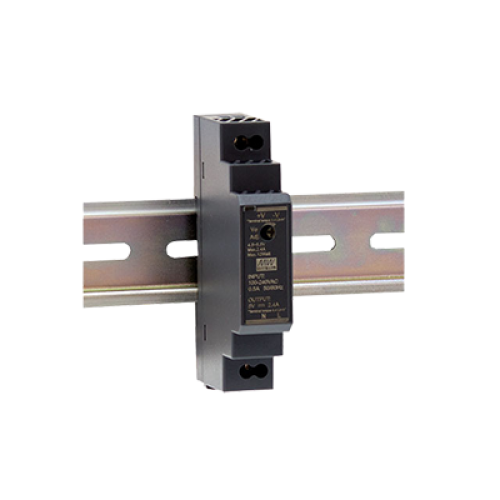

HDR-15-15
15W 15VDC 1A Ultra Slim Step Shape DIN Rail Power Supply Please ring us to discuss a great price for this product.Product Features
- Ultra slim design with 17.5mm(1SU) width
- LED indicator for power on
- Pass LPS (Limited power source)
- Isolation class II
- Cooling by free air convection (working temperature:-30~+70°C)
- DIN rail TS-35/7.5 or 15 mountable
- Universal input 85~264VAC(277VAC operational)
- 3 years warranty
- DC output voltage adjustable
- No load power consumption<0.3W
- Protections: Short circuit / Overload / Over voltage / Over temperature
Description
HDR-15 is one economical ultra-slim 15W DIN rail power supply series, adapted to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed to be 17.5mm(1SU) in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 85VAC to 264VAC (277VAC operational) and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current. HDR-15 is designed with plastic housing that can effectively prevent users from electric hazards. With working efficiency up to 87%, the entire series can operate at the ambient temperature between -30°C and 70°C under air convection. The complete protection functions and relevant certificates for home automation and industrial control apparatus (IEC62368-1, UL508, UL62368-1, BS EN/EN61558-2-16) make HDR-15 a very competitive power supply solution for household and industrial applications.
