DDR-15G-15

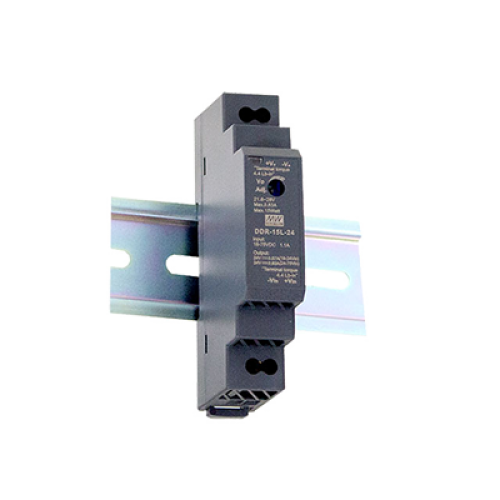

15W 9 ~ 36VDC Input 15VDC Output DIN Rail Converter Please ring us to discuss a great price for this product.Product Features
- Cooling by free air convection
- No minimum load required
- Width only 17.5mm (1SU)
- 4KVdc I/O isolation (Reinforced isolation)
- 3 years warranty
- 40 ~ +85°C wide working temperature
- DC output adjustable (±10%)
- 4:1 ultra wide input range
- Can be installed on DIN rail TS-35/7.5 or 15
Description
The DDR-15 series is a 15W DC-DC DIN rail type converter equipped with DIN rail mounting brackets for fast and convenient installations. DDR-15 features a 4:1 wide input range, -40 ~ +85°C operating temperature, 4000VDC IP-OP reinforced isolation and a 3-year warranty. DDR-15 is suitable for industrial control, automation, and communication systems. Typical applications include battery voltage regulator, additional system insulation and DC UPS.
