DRF-24V240W1PBA
240W 10A 24VDC High Reliability DIN Rail Power Supply Please ring us to discuss a great price for this product.Product Features
- 85–277VAC or 100–400VDC wide input range
- Withstands 305VAC input for 60 seconds
- Power Boost: 150% for 5 seconds, 200% for 50ms and 500% for 5ms
- Full-load operation up to +60°C
- Wide -40°C to +80°C operating temperature range with derating
- DC OK relay contact and LED status indication
- Remote ON/OFF control
- Conformal coating for additional PCB protection
- Short-circuit, overload and over-voltage protection
- SEMI F47 compliance, Class B EMC performance and 5-year warranty
Description

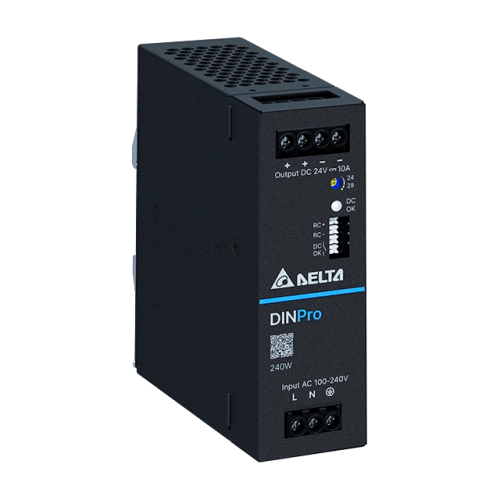

The Delta DRF-24V240W1PBA delivers regulated 24VDC output at 10A with 240W rated power for industrial automation, machine control and electrical panel applications. Its wide 85–277VAC or 100–400VDC input range supports flexible installation, while 305VAC withstand capability for 60 seconds provides additional resilience. The unit offers 150% Power Boost for five seconds, 200% for 50ms and up to 500% for 5ms to support demanding short-duration loads. Output voltage is adjustable from 24V to 29V, with typical efficiency reaching 93.5% at 230VAC. Remote ON/OFF, DC OK relay and LED indication, conformal coating and built-in protection functions support dependable industrial system operation.
