DRF-24V240W1GTA

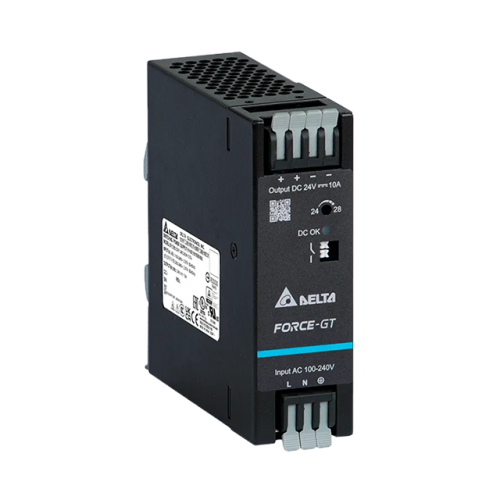

240W 10A 24VDC Single Phase DIN Rail Power Supply - Spring Clamp Please ring us to discuss a great price for this product.Product Features
- High efficiency up to 96%
- Surge capacity up to 6kV with SPD
- Constant-current mode for charging and demanding DC loads
- Wide operating temperature range down to -40°C
- Full rated output at elevated ambient temperatures
- DC OK relay contact and LED status indication
- Conformal-coated electronics for improved environmental protection
- Short-circuit, overload and over-voltage protection
- AC and DC input capability across the Force-GT range
- Available with screw-terminal or spring-clamp connections
Description
The Delta DRF-24V240W1GTA is a 240W industrial DIN rail power supply delivering 24VDC at 10A with spring-clamp connections. Its 90–264VAC or 127–375VDC input supports flexible industrial installation, while the output can be adjusted from 24V to 28V. Typical efficiency reaches 94.5% at 230VAC. Constant-current overload operation, short-circuit hiccup auto-recovery and over-voltage protection help maintain dependable system operation. DC OK relay and LED indication provide operating feedback, with conformal coating adding protection for the internal electronics.
