DRF-24V240W3GBA
240W 10A 24VDC Three/Two Phase DIN Rail Power Supply - Screw Terminal Please ring us to discuss a great price for this product.Product Features
- High efficiency up to 96%
- Surge capacity up to 6kV with SPD
- Constant-current mode for charging and demanding DC loads
- Wide operating temperature range down to -40°C
- Full rated output at elevated ambient temperatures
- DC OK relay contact and LED status indication
- Conformal-coated electronics for improved environmental protection
- Short-circuit, overload and over-voltage protection
- AC and DC input capability across the Force-GT range
- Available with screw-terminal or spring-clamp connections
Description

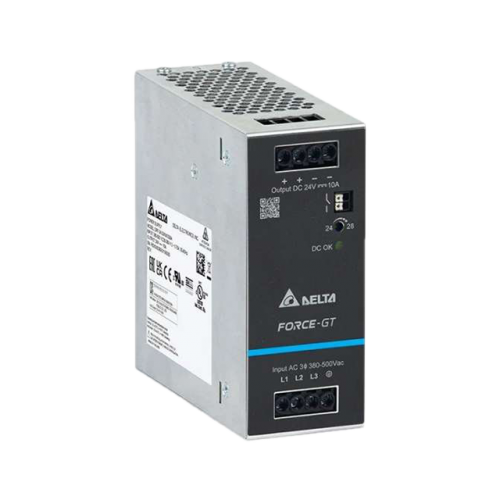

The Delta DRF-24V240W3GBA is a 24VDC industrial DIN rail power supply rated at 10A and 240W. It supports 3 × 320–575VAC, 2 × 340–575VAC or 450–800VDC input, providing flexibility for high-voltage industrial distribution systems. Output is adjustable from 24V to 28V and typical efficiency reaches 89.5% at three-phase 400/500VAC. Constant-current overload operation works alongside short-circuit hiccup recovery and over-voltage auto-recovery. The IP20 unit uses screw-terminal connections and provides DC OK relay and LED indication, conformal coating and cold-start operation at -40°C. Full rated load is available up to +55°C.
