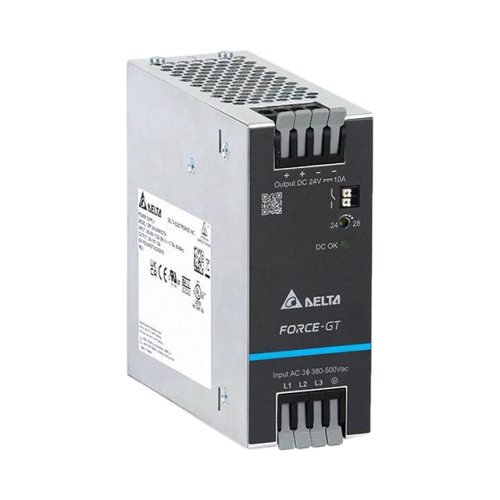

DRF-24V240W3GTA
240W 10A 24VDC Three/Two Phase DIN Rail Power Supply - Spring Clamp Please ring us to discuss a great price for this product.Product Features
- High efficiency up to 96%
- Surge capacity up to 6kV with SPD
- Constant-current mode for charging and demanding DC loads
- Wide operating temperature range down to -40°C
- Full rated output at elevated ambient temperatures
- DC OK relay contact and LED status indication
- Conformal-coated electronics for improved environmental protection
- Short-circuit, overload and over-voltage protection
- AC and DC input capability across the Force-GT range
- Available with screw-terminal or spring-clamp connections
Description
The Delta DRF-24V240W3GTA is a 240W industrial DIN rail power supply delivering 24VDC at 10A with spring-clamp terminals. It supports 3 × 320–575VAC, 2 × 340–575VAC and 450–800VDC input, while its output is adjustable from 24V to 28V. Typical efficiency reaches 89.5% at three-phase 400/500VAC. Constant-current overload behaviour, short-circuit hiccup auto-recovery and over-voltage auto-recovery support dependable industrial operation. DC OK relay and LED indication provide straightforward monitoring, while conformal coating and an IP20 enclosure support control-panel installation.
