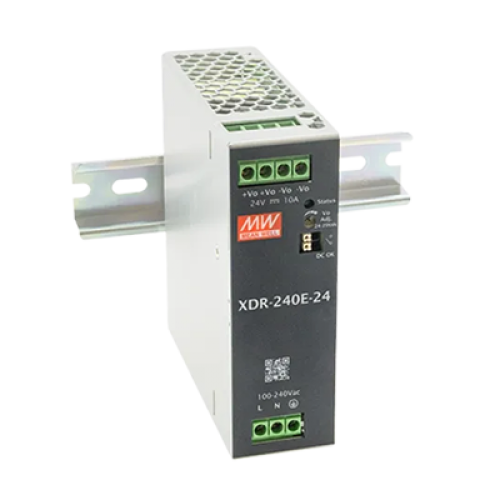

XDR-240E-24
240W 24VDC Economical Ultra Slim Industrial DIN Rail Power Supplies Please ring us to discuss a great price for this product.Product Features
- High efficiency up to 95.5% and no load power dissipation <1.2W
- 3 years warranty
- Built-in DC OK relay contact
- Fanless design, cooling by free air convection
- Protections: Short circuit / Overload / Over voltage / Over temperature
- L116 x W40 x H125.2mm
- 40~+70°C wide range operation temperature (>+50°C derating)
- 85~264Vac input with PFC
Description
The MEAN WELL XDR-240E-24 is a 240W AC/DC economical ultra slim industrial DIN rail power supply designed for compact control panels and industrial equipment requiring a regulated 24VDC output. It delivers 10A rated current and 240W rated power, with an adjustable output range of 24V to 29V. The unit accepts 85-264VAC input and 120-370VDC input, provides 95.2% typical efficiency and uses fanless free air convection cooling to support reliable operation in enclosed systems. With a 40 x 125.2 x 116mm slim DIN rail housing, built-in PFC, built-in constant current limiting, DC OK relay contact, overvoltage category III, operation from -40°C to +70°C with derating and protection against short circuit, overload, overvoltage and overtemperature, the XDR-240E-24 is suitable for industrial control systems, factory automation, semiconductor fabrication equipment, electro-mechanical apparatus and battery charger applications.
