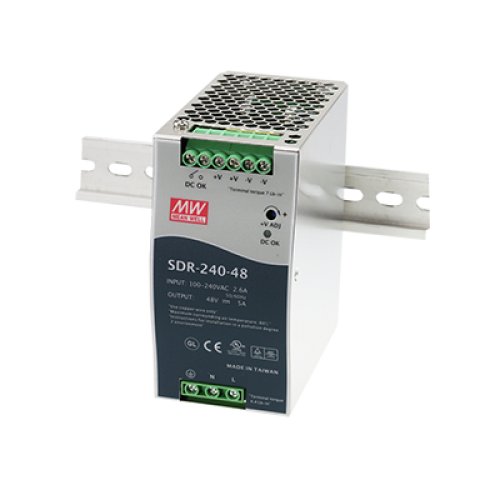

SDR-240-48
240W 48VDC 5A PFC Industrial Din Rail Power Supply Please ring us to discuss a great price for this product.Product Features
- 100% full load burn-in test
- 150% peak load capability
- BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
- High efficiency 94% and low power dissipation
- Can be installed on DIN rail TS-35/7.5 or 15
- 3 years warranty
- Built-in DC OK relay contact
- Protections: Short circuit / Overload / Over voltage / Over temperature
- UL 508 (industrial control equipment) approved
- Built-in active PFC function, PF>0.93
- Cooling by free air convection
Description
The SDR-240 Series is a 240W slim din rail power supply featuring 93.5%+ high efficiency in a slim 63.5mm design. A full input range switcher with built-in PFC function and 360W peak power ability for 3 seconds, SDR-240 also has standard functions that include DC OK relay contact, on panel LED indicator, and short-circuit, overload, over voltage, and over temperature protections. SDR-240 Series also fulfills the requirement of EN61000-3-2 for harmonic current and complies with GL and SEMI F47 for marine and semi-conductor related usage in addition to UL, CUL, TÜV and CE.
