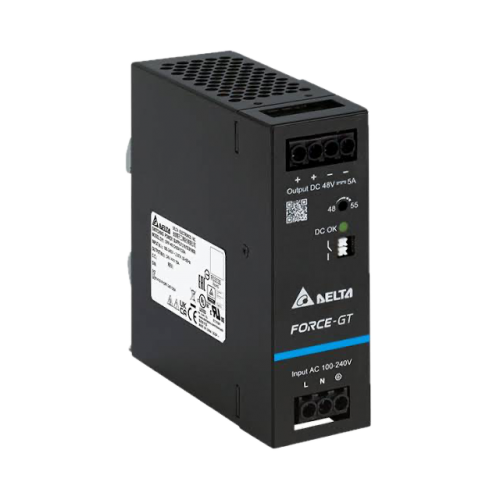

DRF-48V240W1GBA
240W 5A 48VDC Single Phase DIN Rail Power Supply - Screw Terminal Please ring us to discuss a great price for this product.Product Features
- High efficiency up to 96%
- Surge capacity up to 6kV with SPD
- Constant-current mode for charging and demanding DC loads
- Wide operating temperature range down to -40°C
- Full rated output at elevated ambient temperatures
- DC OK relay contact and LED status indication
- Conformal-coated electronics for improved environmental protection
- Short-circuit, overload and over-voltage protection
- AC and DC input capability across the Force-GT range
- Available with screw-terminal or spring-clamp connections
Description
The Delta DRF-48V240W1GBA provides 48VDC at 5A with 240W rated output for industrial control, communications and automation systems. It accepts 90–264VAC or 127–375VDC input and allows the output to be adjusted from 48V to 55V. Typical efficiency reaches 94% at 230VAC. Screw-terminal connections provide familiar panel wiring, while constant-current overload behaviour, short-circuit hiccup auto-recovery and over-voltage protection support dependable operation. DC OK relay and LED indication provide straightforward system monitoring, complemented by conformal coating and a -40°C to +70°C operating range.
