DRA-40-12

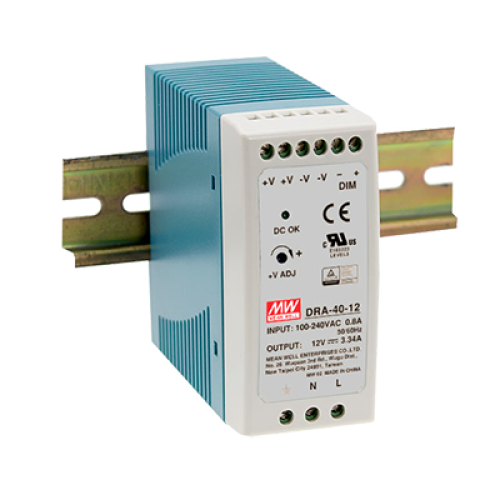

40.08W 12V 3.34A Switching DIN RAIL Power Supply with Dimming Functionality Please ring us to discuss a great price for this product.Product Features
- 100% full load burn-in test
- Can be installed on DIN rail TS-35/7.5 or 15
- Output Voltage adjustable through internal potentiometer
- 3 years warranty
- Pass LPS
- Protections: Short circuit / Overload / Over voltage
- Universal AC input / Full range
- Cooling by free air convection
- LED indicator for power on
- Output Current adjustable through external 1~10Vdc, PWM signal or resistance
Description
DRA-40 is one 40W AC/DC DIN rail power supply, featuring the adjustable output current. Users are able to easily change the constant output current level via 1~10Vdc, PWM signal or resistance. DRA-40 can be mounted on DIN rail TS-35/7.5 or 15; in addition, the width of the unit is only 40mm, so it is well suited for installation in a limited space. DRA-40 accepts the universal AC input between 90VAC and 264VAC; the efficiency is up to 87% so that the entire series can operate under free air convection from -30°C through 70°C.
