DRF-48V480W3GBA
480W 10A 48VDC Three/Two Phase DIN Rail Power Supply - Screw Terminal Please ring us to discuss a great price for this product.Product Features
- High efficiency up to 96%
- Constant-current mode for charging and demanding DC loads
- Surge capacity up to 6kV with SPD
- Wide operating temperature range down to -40°C
- Full rated output at elevated ambient temperatures
- DC OK relay contact and LED status indication
- Conformal-coated electronics for improved environmental protection
- Short-circuit, overload and over-voltage protection
- AC and DC input capability across the Force-GT range
- Available with screw-terminal or spring-clamp connections
Description

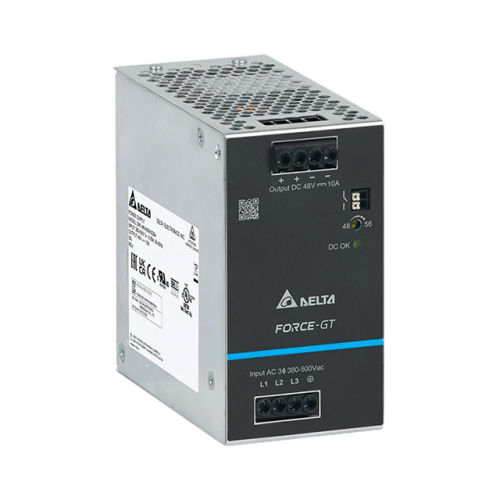

The Delta DRF-48V480W3GBA is a high-efficiency 48VDC industrial DIN rail power supply providing 10A and 480W rated output. It accepts 3 × 320–575VAC, 2 × 340–575VAC or 450–800VDC input, making it suitable for a broad range of high-voltage industrial power systems. The output is adjustable from 48V to 56V and typical efficiency reaches 95.5% at three-phase 400/500VAC. The screw-terminal IP20 design includes constant-current overload protection, short-circuit hiccup recovery and over-voltage auto-recovery. DC OK relay and LED indication, conformal coating and cold-start capability to -40°C support reliable industrial integration.
