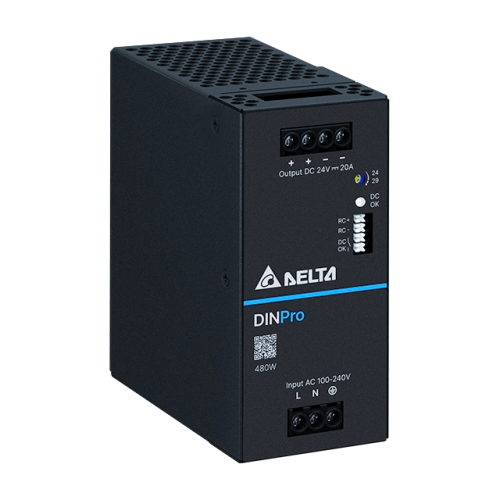

DRF-24V480W1PBA
480W 20A 24VDC High Reliability DIN Rail Power Supply Please ring us to discuss a great price for this product.Product Features
- 85–277VAC or 100–400VDC wide input range
- Withstands 305VAC input for 60 seconds
- Power Boost: 150% for 5 seconds, 200% for 50ms and 500% for 5ms
- Full-load operation up to +60°C
- Wide -40°C to +80°C operating temperature range with derating
- DC OK relay contact and LED status indication
- Remote ON/OFF control
- Conformal coating for additional PCB protection
- Short-circuit, overload and over-voltage protection
- SEMI F47 compliance, Class B EMC performance and 5-year warranty
Description
The Delta DRF-24V480W1PBA is a high-power 24VDC industrial DIN rail power supply delivering 20A and 480W rated output. Its wide 85–277VAC or 100–400VDC input supports industrial automation, machinery and control applications across varied power environments, while 305VAC withstand capability for 60 seconds improves input resilience. Power Boost provides 150% output for five seconds, 200% for 50ms and up to 500% for 5ms for demanding transient loads. Output voltage is adjustable from 24V to 29V, while typical efficiency reaches 95% at 230VAC. Remote ON/OFF control, DC OK relay and LED indication, conformal coating and comprehensive protection support reliable operation. The unit is 56mm wide.
