DRF-24V480W1GBA

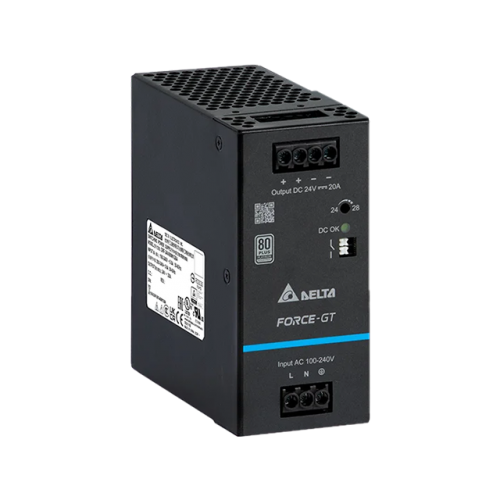

480W 20A 24VDC Single Phase DIN Rail Power Supply - Screw Terminal Please ring us to discuss a great price for this product.Product Features
- High efficiency up to 96%
- Surge capacity up to 6kV with SPD
- Constant-current mode for charging and demanding DC loads
- Wide operating temperature range down to -40°C
- Full rated output at elevated ambient temperatures
- DC OK relay contact and LED status indication
- Conformal-coated electronics for improved environmental protection
- Short-circuit, overload and over-voltage protection
- AC and DC input capability across the Force-GT range
- Available with screw-terminal or spring-clamp connections
Description
The Delta DRF-24V480W1GBA delivers 480W at 24VDC and 20A for higher-power industrial automation and machinery applications. Its 90–264VAC or 127–375VDC input supports broad system compatibility, while the 24V output is adjustable to 28V. Typical efficiency reaches 95% at 230VAC. Constant-current overload operation is supported by short-circuit hiccup recovery and over-voltage protection. DC OK relay and LED indication provide status monitoring, while conformal coating improves protection of the electronics. The 56mm-wide screw-terminal enclosure combines high output power with compact DIN rail installation.
