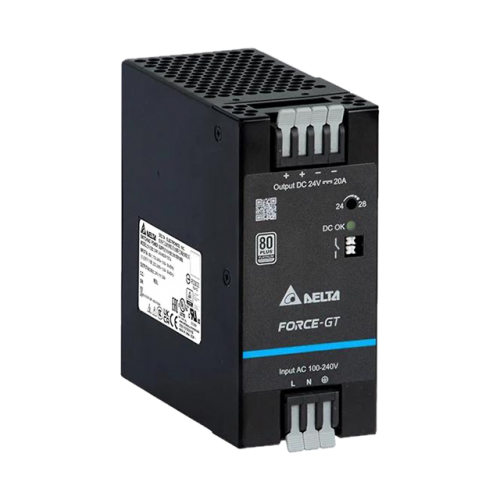

DRF-24V480W1GTA
480W 20A 24VDC Single Phase DIN Rail Power Supply - Spring Clamp Please ring us to discuss a great price for this product.Product Features
- High efficiency up to 96%
- Surge capacity up to 6kV with SPD
- Constant-current mode for charging and demanding DC loads
- Wide operating temperature range down to -40°C
- Full rated output at elevated ambient temperatures
- DC OK relay contact and LED status indication
- Conformal-coated electronics for improved environmental protection
- Short-circuit, overload and over-voltage protection
- AC and DC input capability across the Force-GT range
- Available with screw-terminal or spring-clamp connections
Description
The Delta DRF-24V480W1GTA delivers 24VDC at 20A with 480W rated output for demanding industrial automation, machinery and control systems. Spring-clamp terminals support rapid installation, while 90–264VAC or 127–375VDC input provides flexible system compatibility. The output can be adjusted from 24V to 28V and typical efficiency reaches 95% at 230VAC. Constant-current overload behaviour, short-circuit hiccup recovery and over-voltage protection support reliable operation. The unit also incorporates DC OK relay and LED indication, conformal coating and full-load capability up to +60°C.
