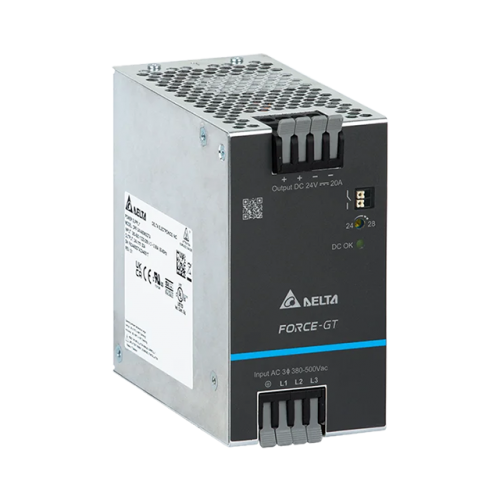

DRF-24V480W3GTA
480W 20A 24VDC Three/Two Phase DIN Rail Power Supply - Spring Clamp Please ring us to discuss a great price for this product.Product Features
- Constant-current mode for charging and demanding DC loads
- Wide operating temperature range down to -40°C
- Full rated output at elevated ambient temperatures
- DC OK relay contact and LED status indication
- Conformal-coated electronics for improved environmental protection
- Short-circuit, overload and over-voltage protection
- AC and DC input capability across the Force-GT range
- Available with screw-terminal or spring-clamp connections
- High efficiency up to 96%
- Surge capacity up to 6kV with SPD
Description
The Delta DRF-24V480W3GTA delivers 480W at 24VDC and 20A for high-power automation, machine-building and industrial control systems. Spring-clamp connections support fast installation, while input compatibility covers 3 × 320–575VAC, 2 × 340–575VAC and 450–800VDC. The output is adjustable between 24V and 28V, with typical efficiency reaching 94% at three-phase 400/500VAC. The IP20 design incorporates 110–150% constant-current overload protection, short-circuit hiccup recovery and over-voltage auto-recovery. DC OK monitoring, conformal coating and -40°C cold-start capability further support demanding installations.
