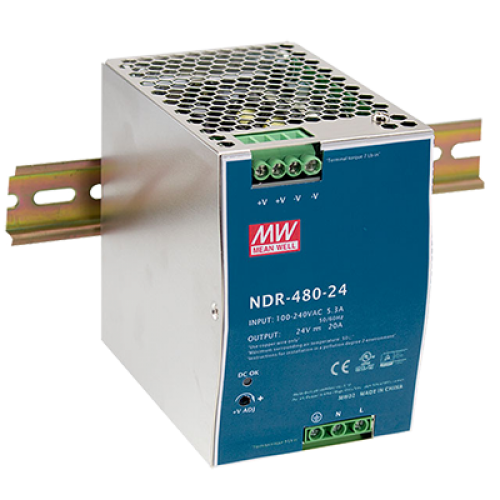

NDR-480-24
480W 24VDC 20A Industrial Din Rail Power Supply Please ring us to discuss a great price for this product.Product Features
- Cooling by free air convection
- Universal AC input / Full range
- 100% full load burn-in test
- Built-in active PFC function
- Can be installed on DIN rail TS-35/7.5 or 15
- BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
- Protections: Short circuit / Overload / Over voltage / Over temperature
- 3 years warranty
- UL 508 (industrial control equipment) approved
Description
NDR-480 is one economical slim 480W Din rail power supply series, adapted to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed to be 85.5mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 90VAC to 264VAC and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current. NDR-480 is designed with a metal housing that enhances the unit's power dissipation. With a working efficiency of up to 92.5%, the entire series can operate at the ambient temperature between -20°C and 70°C under air convection. It is equipped with a constant current mode for overload protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV BS EN/EN62368-1, etc.) make NDR-480 a very competitive power supply solution for industrial applications.
