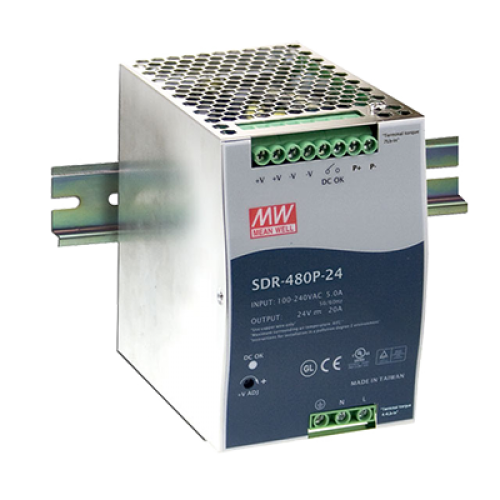

SDR-480P-24
480W 24VDC 20A Parallel Function PFC Industrial Din Rail Power Supply Please ring us to discuss a great price for this product.Product Features
- 100% full load burn-in test
- Current sharing up to 3840W (7+1)
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Built-in active PFC function, PF>0.94
- Cooling by free air convection
- High efficiency 94% and low power dissipation
- Can be installed on DIN rail TS-35/7.5 or 15
- 150% peak load capability
- 3 years warranty
- Built-in constant current limiting circuit
Description
The SDR-480P Series is a 480W slim din rail power supply with PFC and parallel function featuring 94%+ high efficiency in a slim 85mm design. A full input range switcher with built-in PFC function and 720W peak power ability for 3 seconds SDR-480P also has standard functions that include DC OK relay contact, on panel LED indicator, and short-circuit, overload, over-voltage, and over-temperature protections. SDR-480P Series also fulfils the requirement of EN61000-3-2 for harmonic current and complies with GL and SEMI F47 for marine and semi-conductor related usage in addition to UL, CUL, TÜV and CE certifications.
