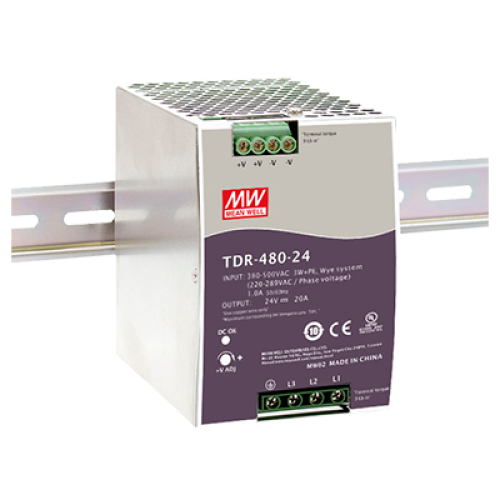

TDR-480-24
480W 24VDC 20A Three Phase PFC Industrial DIN Rail Power Supply Please ring us to discuss a great price for this product.Product Features
- Three-Phase 340 – 550VAC wide range input (Dual phase operation possible)
- Built-in active PFC function compliance to BS EN/EN61000-3-2
- Cooling by free air convection
- High efficiency 93% and low power dissipation
- 3 years warranty
- Built-in constant current limiting circuit
- Optional DC OK relay contact
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Width only 85.5mm
Description
TDR-480 is an economical, slim 480W DIN rail power supply series, adapted to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed to be 85.5mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 3Ø 340VAC to 550VAC (Dual Phase operation possible) and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current. TDR-480 is designed with a metal housing that enhances the unit's power dissipation. With working efficiency up to 93%, the entire series can operate at the ambient temperature between -20°C and 70°C under air convection. It is equipped with a constant current mode for overload protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial apparatus (UL508, TUV BS EN/EN62368-1, etc.) make TDR-480 a very competitive power supply solution for industrial applications.
