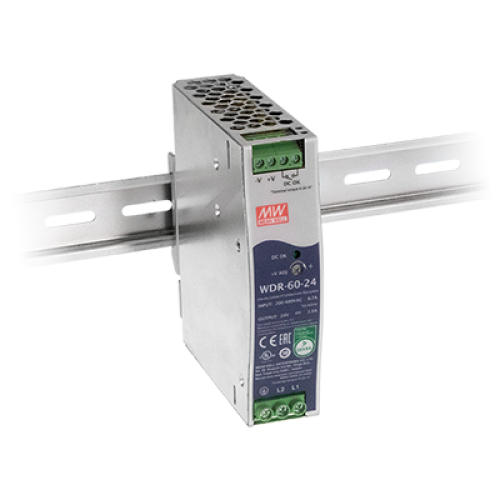

WDR-60-12
60W 12VDC 5A Ultra Wide Input Industrial DIN Rail Power Supply Please ring us to discuss a great price for this product.Product Features
- 3 years warranty
- Can be installed on DIN rail TS-35/7.5 or 15
- Cooling by free air convection
- 180 ~ 550Vac ultra wide input for 1-phase or 2-phase
- DC output voltage adjustable(+20%)
- 32mm slim width
- 30~+85°C ultra-wide operating temperature (+60°C derating)
- 4.7KVac I/O high isolation (Reinforced isolation)
- DC OK relay contact
- Protections: Short circuit / Overload / Over voltage / Over temperature
Description
WDR-60 Series is a 60W DIN rail power supply with ultra-wide AC input range. It is suitable to be mounted on TS-35/7.5 or TS-35/15 rails. It can accept 180~550VAC ultra-wide input voltage range for single phase or 2-phase system, it is easy to install and has a slim design. It has a wide operating temperature range of -30 ~ +85°C, 4.7KVAC high isolation voltage, operation at 2000m altitude and high efficiency.WDR-60 is compliant with EN-61000-6-2 standards regarding immunity for industrial environments. It is suitable for industrial automation, surveillance, telecommunication and more applications.
